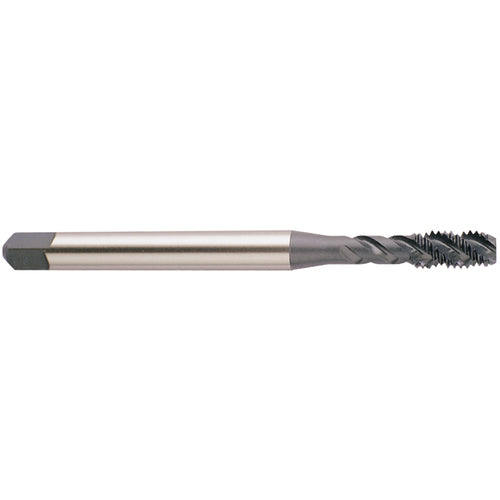

M5X0.8 D5 2FL SPFL MOD BTTM TAP
Item #: YG42BX285
Brand: YG-1 Cutting Tools
Model #: BX285
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M5 |
| Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 0.8 mm |
| Standard | 302A |
| Thread Standard | Metric |
| Tool Type | Tap |
| Overall Length (OAL) | 2-3/8″ |
| Chamfer | 2P-3P |
| Thread Cutting Part Length (THL) | 0.354″ |
| Coating | Hardslick |
| Usable Length (LU) | 0.933″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 |
| Square Size | 0.152″ |
| Flute Helix Angle (FHA) | 50 Degrees |
| Measurement Type | Metric |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Series/List # | BX |
| Cutting Edge Material | HSSE-V3 |
