Swiss Collets TF25
- For Swiss type CNC automatic lathes
- Straight shoulder
- Available in smooth or grooved bore
- Excellent bore finish
- Collet Angle:
TF25 Series: 16° - Custom collets can be made per your requirements
| INCH Bore | METRIC Bore | |||||||||

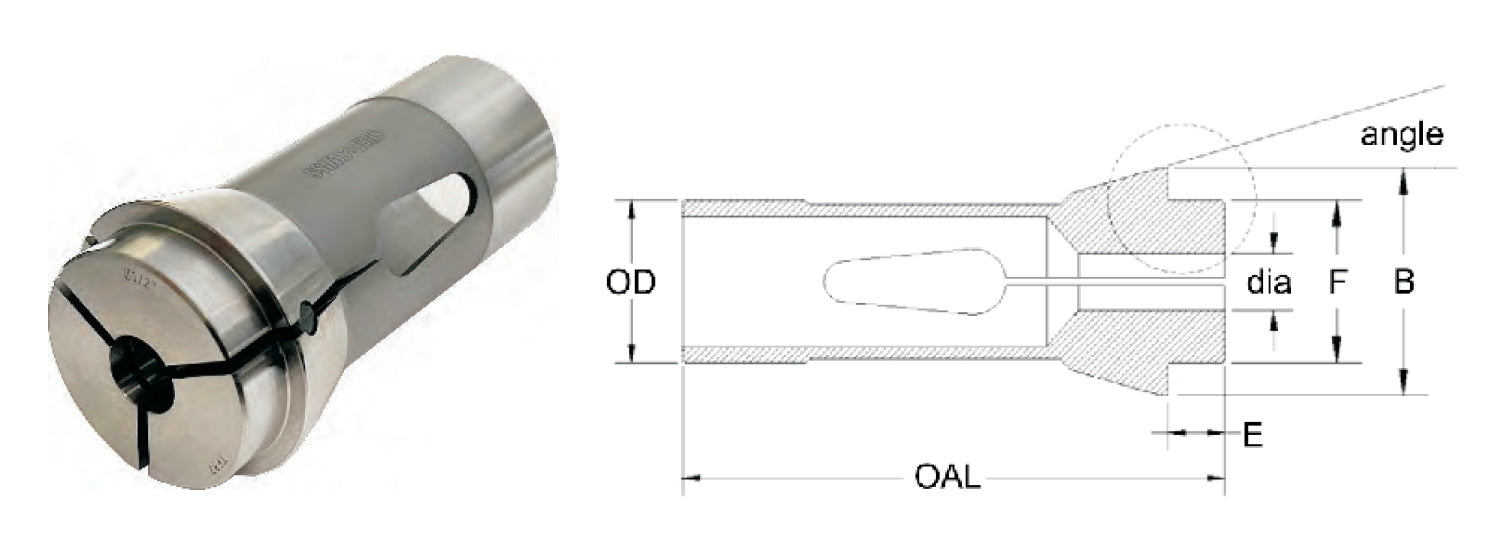

| Industry Series | ID Style | Guide Dia OD | B | F | Nose Length E | OAL | ID Bore Size | Click On Part # To Order | ID Bore Size | Click On Part # To Order |
| TF25 | ROUND SMOOTH | 25mm | 35mm | 27mm | 10mm | 77mm | 1/8" | TF25-RM-01250 | 4mm | TF25-RM-4M |
| 3/16" | TF25-RM-01875 | 5mm | TF25-RM-5M | |||||||
| 1/4" | TF25-RM-02500 | 6mm | TF25-RM-6M | |||||||
| 5/16" | TF25-RM-03125 | 7mm | TF25-RM-7M | |||||||
| ROUND SERRATED | 25mm | 35mm | 27mm | 10mm | 77mm | 3/8" | TF25-RE-03750 | 8mm | TF25-RE-8M | |
| 7/16" | TF25-RE-04375 | 9mm | TF25-RE-9M | |||||||
| 1/2" | TF25-RE-05000 | 10mm | TF25-RE-10M | |||||||
| 9/16" | TF25-RE-05625 | 11mm | TF25-RE-11M | |||||||
| 5/8" | TF25-RE-06250 | 12mm | TF25-RE-12M | |||||||
| 11/16" | TF25-RE-06875 | 13mm | TF25-RE-13M | |||||||
| 3/4" | TF25-RE-07500 | 14mm | TF25-RE-14M | |||||||
| - | - | 15mm | TF25-RE-15M | |||||||
| - | - | 16mm | TF25-RE-16M | |||||||
| - | - | 17mm | TF25-RE-17M | |||||||
| - | - | 18mm | TF25-RE-18M | |||||||
| - | - | 19mm | TF25-RE-19M | |||||||
| - | - | 20mm | TF25-RE-20M | |||||||
