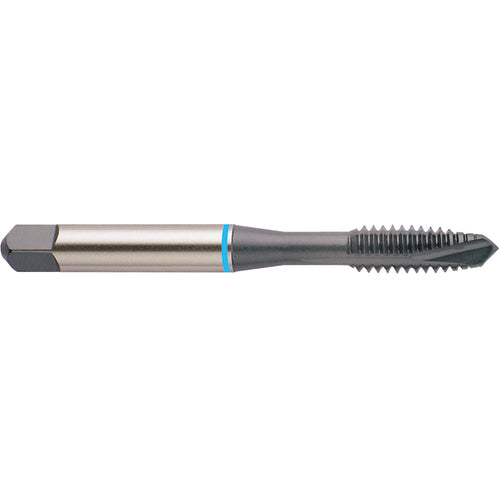

M4X0.7 D4 3FL SPPT PLUG TAP-S/O
Item #: YG41N7244
Brand: YG-1 Cutting Tools
Model #: N7244
| Product Specifications | |
|---|---|
| Thread Size | M4 × 0.7 |
| Cutting Edge Material | Super HSS |
| Thread Diameter Size (TDZ) | M4 |
| Applicable Material | Steel | Stainless Steel |
| Thread Pitch (TP) | 0.7 mm |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Thread Tolerance Class (TCTR) | D4 |
| Thread Cutting Part Length (THL) | 0.453″ |
| Usable Length (LU) | 0.768″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 2.13″ |
| Tapping Prehole Diameter (Pre-hole) | 0.1324″ |
| Chamfer | 4P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | Steam Oxide |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Series/List # | N7 |
