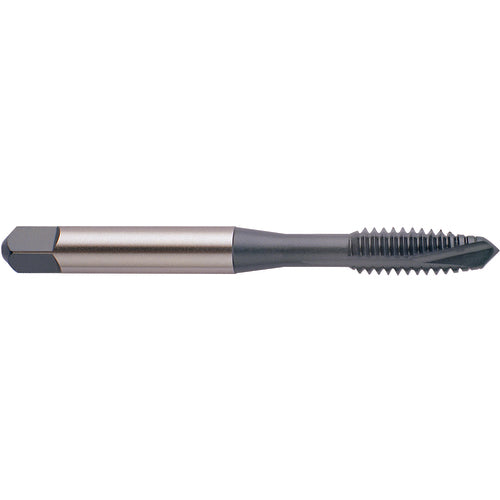

8-32 H3 3FL SP PT TAP PLUG BRIGHT
Item #: YG41J4283
Brand: YG-1 Cutting Tools
Model #: J4283
| Product Specifications | |
|---|---|
| Thread Standard | UNC |
| Tool Type | Spiral Point Tap |
| Thread Size | #8 - 32 |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Thread Diameter Size (TDZ) | #8 |
| Thread Cutting Part Length (THL) | 0.453″ |
| Threads per Inch (TPI) | 32 |
| Tapping Prehole Diameter (Pre-hole) | 0.135″ |
| Thread Tolerance Class (TCTR) | H3 |
| End Shape | Plug |
| Usable Length (LU) | 0.752″ |
| Shank Type | Square |
| Overall Length (OAL) | 2.13″ |
| Length Group | 3xD |
| Chamfer | 4P-5P |
| Square Size | 0.131″ |
| Coating | Bright |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | J4 |
| Cutting Edge Material | HSSE-V3 |
