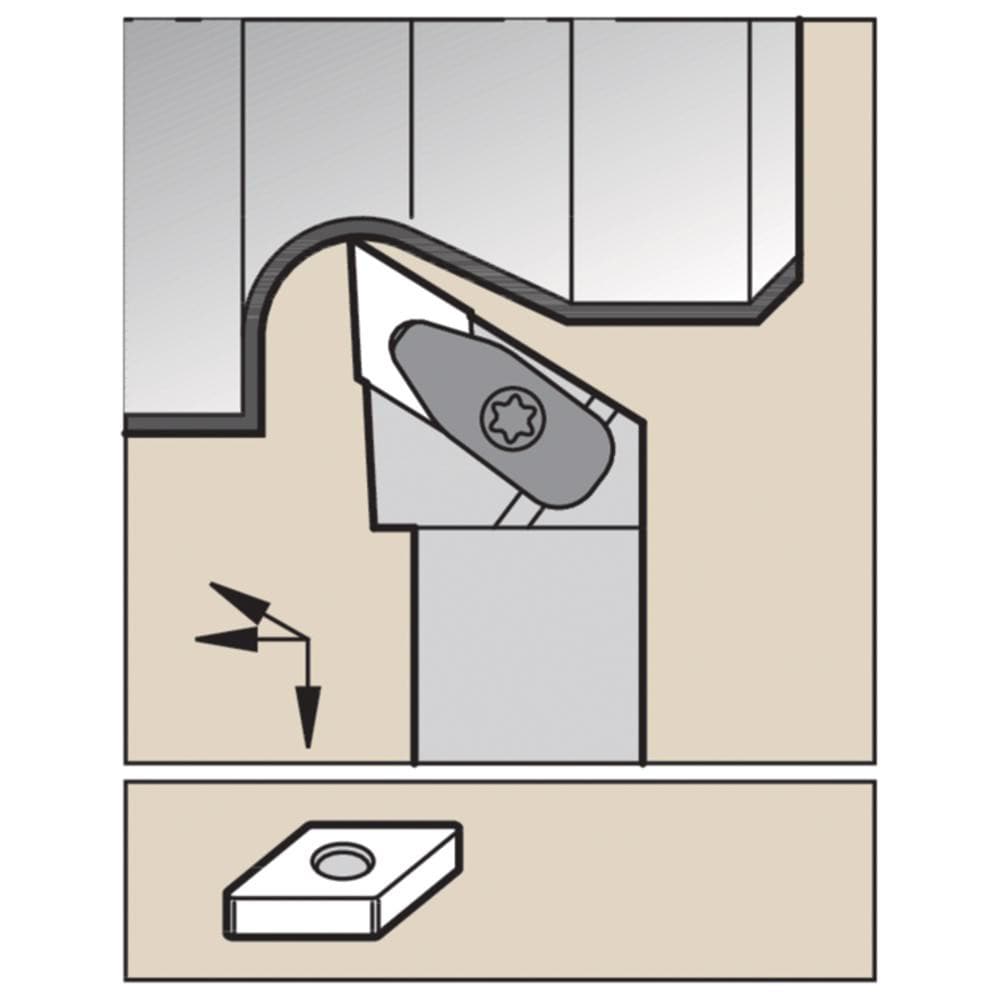

Brand: Widia / Part #: 5697928

Brand: Widia / Part #: 5697928


Item #: 97730568
Brand: Widia
Model #: 5697928

Product Specifications

Cutting Direction Right Hand
Hand of Holder Right Hand
Compatible Insert Size Code 1104..
Toolholder Style DDJNR
Rake Negative
Rake Angle -5 (Axial);-5 (Radial)
Multi-use Tool Yes
Lead Angle 93.000
Insert Holding Method Clamp
Insert Compatibility DN..1104..
Shank Width (mm) 25.00
Shank Height (mm) 25.00
Series DDJN
Overall Length (mm) 150.0000
Cutting Tool Application Copying; Turning
Head Length (mm) 29.97
Back of Bar to Cutting Edge (mm) 32.00
Primary Workpiece Material Universal
Insert Width (mm) 9.53
Toolholder Material Steel
ISO Number DDJNR2525M11KC04
Complete Insert Compatibility DN..
Insert Thickness 4.76
Coolant Through No
Insert Inscribed Circle (mm) 9.53
$125.25
