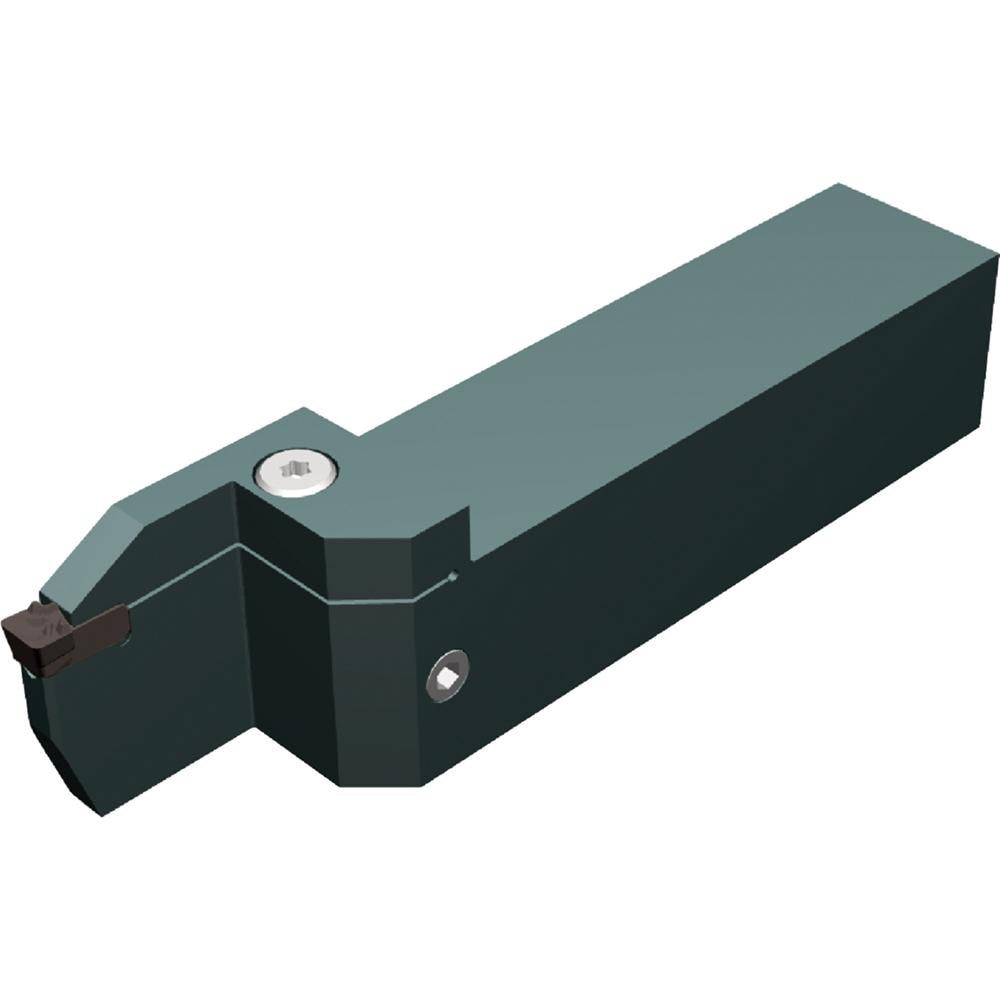

Brand: Widia / Part #: 6461885

Brand: Widia / Part #: 6461885


Item #: 99957524
Brand: Widia
Model #: 6461885

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 0.6300
Hand of Holder Right Hand
Maximum Groove Width (Decimal Inch) 0.0790
Minimum Groove Width (Decimal Inch) 0.0787
Toolholder Style WGCSM
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0200
Insert Compatibility WG0200M02P02
Shank Height (Inch) 1
Shank Height (Decimal Inch) 1.0000
Shank Length (Decimal Inch) 4.7800
Shank Width/Diameter (Decimal Inch) 1.0000
Shank Width/Diameter (Inch) 1
Series WGC
Overall Length (Decimal Inch) 6.0000
Cutting Tool Application Grooving; Facing; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 1.0010
Head Height (mm) 32.400
Head Length (Decimal Inch) 1.2205
Primary Workpiece Material Universal
Insert Seat Size 2.0
Coolant Through No
$126.08
