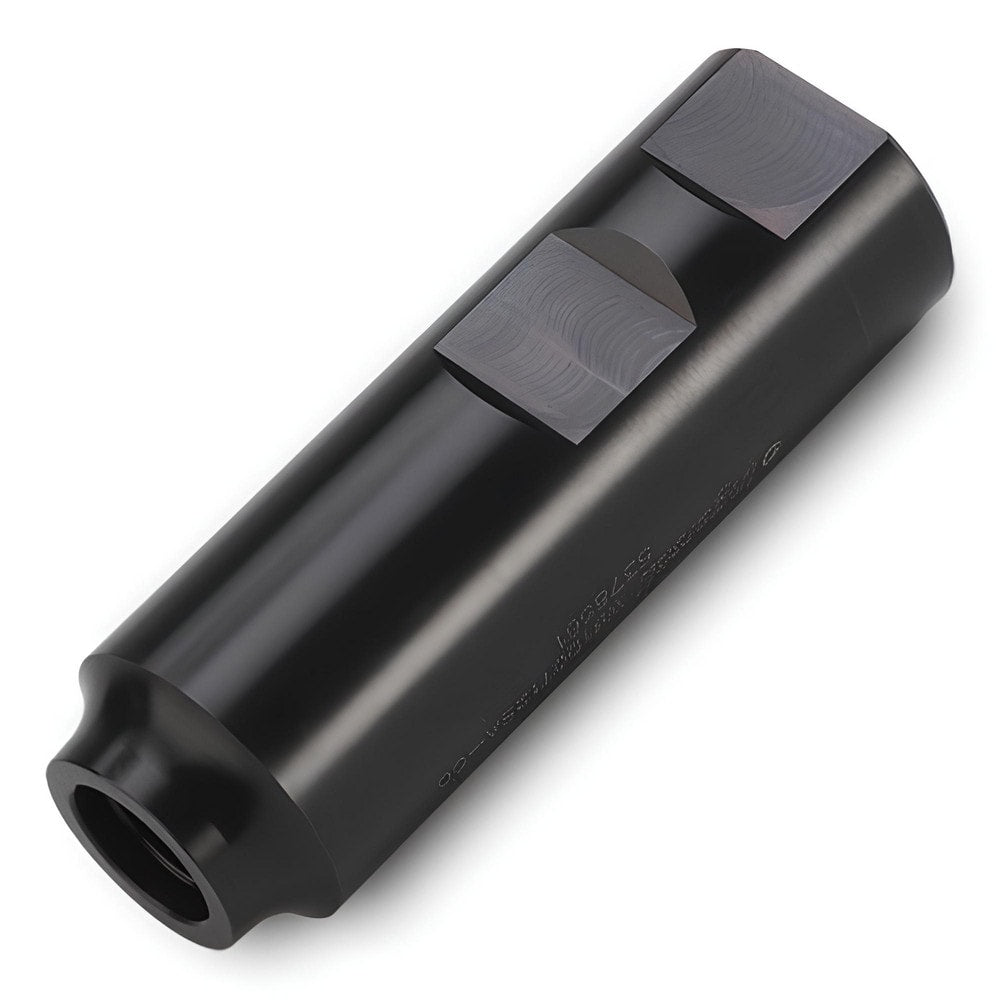

Brand: Ingersoll Cutting Tools / Part #: 2928041
Item #: 99007502
Brand: Ingersoll Cutting Tools
Model #: 2928041
Product Specifications
| Overall Length (Decimal Inch) | 2.5600 |
| Neck Diameter (Decimal Inch) | 0.3600 |
| Neck Thread Size | T06 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.3600 |
| Toolholder Style | W*T*SA |
| Tool Material | Steel |
| Series | W*T*SA |
| Tip Connection Size | T06 |
| Tool Application | Chamfering; Milling |
| Tool Performance | General Purpose |
| For Use With | Milling Tips |
| Weldon Flat | Yes |
| Effective Length (Decimal Inch) | 0.2300 |
| Shank Shape | Round |
| Thread Size Connection to Tip | T06 |
| Manufacturers Catalog Number | WB062T06SA-00 |
| Type | "T" Style Thread Connection |
| Coolant Through | No |
