Brand: Widia / Part #: 3639027

Brand: Widia / Part #: 3639027


Item #: 98005812
Brand: Widia
Model #: 3639027

Product Specifications

Internal or External External
Toolholder Type External Grooving
Insert Seat Size 3
Hand of Holder Right Hand
Cutting Direction Right Hand
Maximum Depth of Cut (Decimal Inch) 0.2098
Minimum Groove Width (Decimal Inch) 0.0000
Toolholder Style NS
Maximum Groove Width (Decimal Inch) 0.1250
Insert Holding Method Clamp
Insert Compatibility N.3R
Compatible Insert Size Code 3
Shank Width/Diameter (Decimal Inch) 0.7500
Shank Height (Decimal Inch) 2.7500
Series NS
Shank Length (Decimal Inch) 2.7500
Overall Length (Decimal Inch) 4.0000
Multi-use Tool Yes

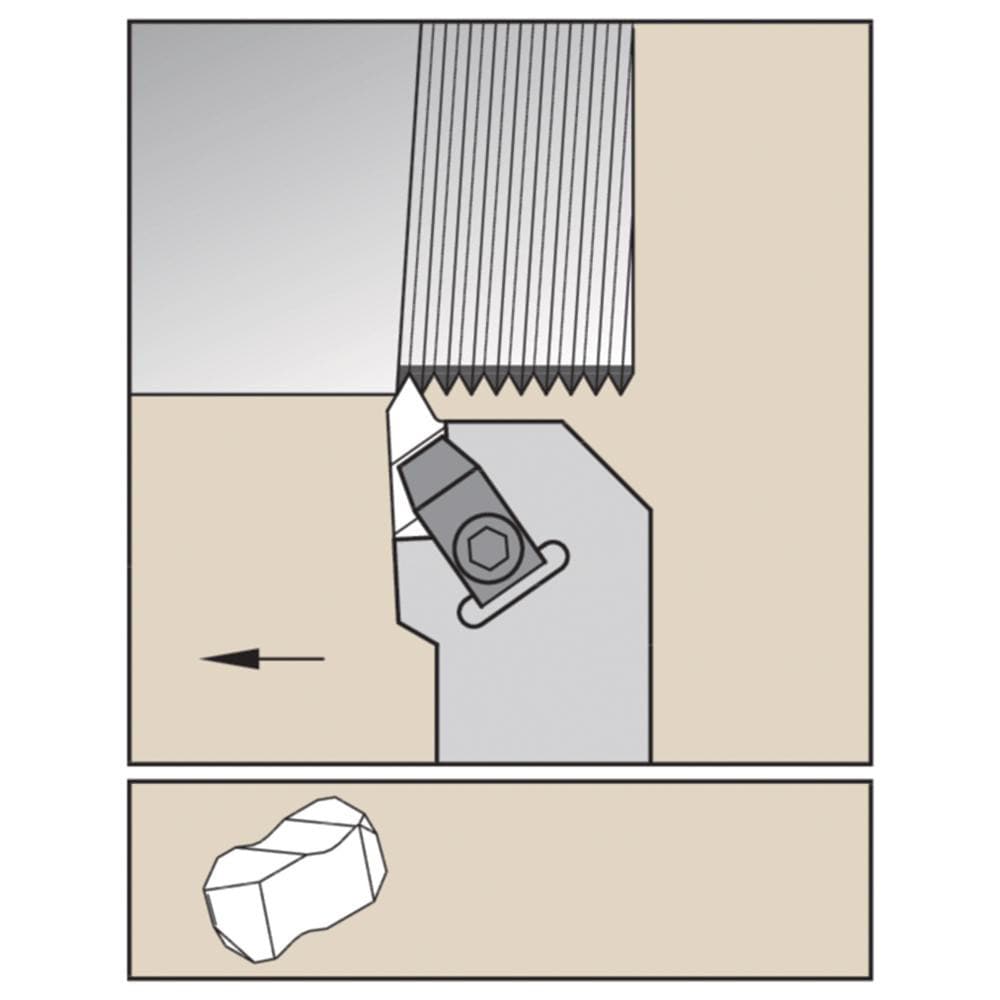

Cutting Tool Application Grooving; Threading
Back of Bar to Cutting Edge (Decimal Inch) 1.0000
Head Height (Decimal Inch) 0.7500
Head Length (Decimal Inch) 0.0000
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Multi-Use Application Yes
Maximum Bore Depth (Decimal Inch) 0.0000
Mount Type Shank
Manufacturers Catalog Number NSR123A
Toolholder Material Steel
Insert Hand Right Hand
Complete Insert Compatibility N.3R
Minimum Bore Diameter (Decimal Inch) 0.0000
Coolant Through No
$100.17
