Brand: Widia / Part #: 2830270

Brand: Widia / Part #: 2830270


Item #: 02771038
Brand: Widia
Model #: 2830270

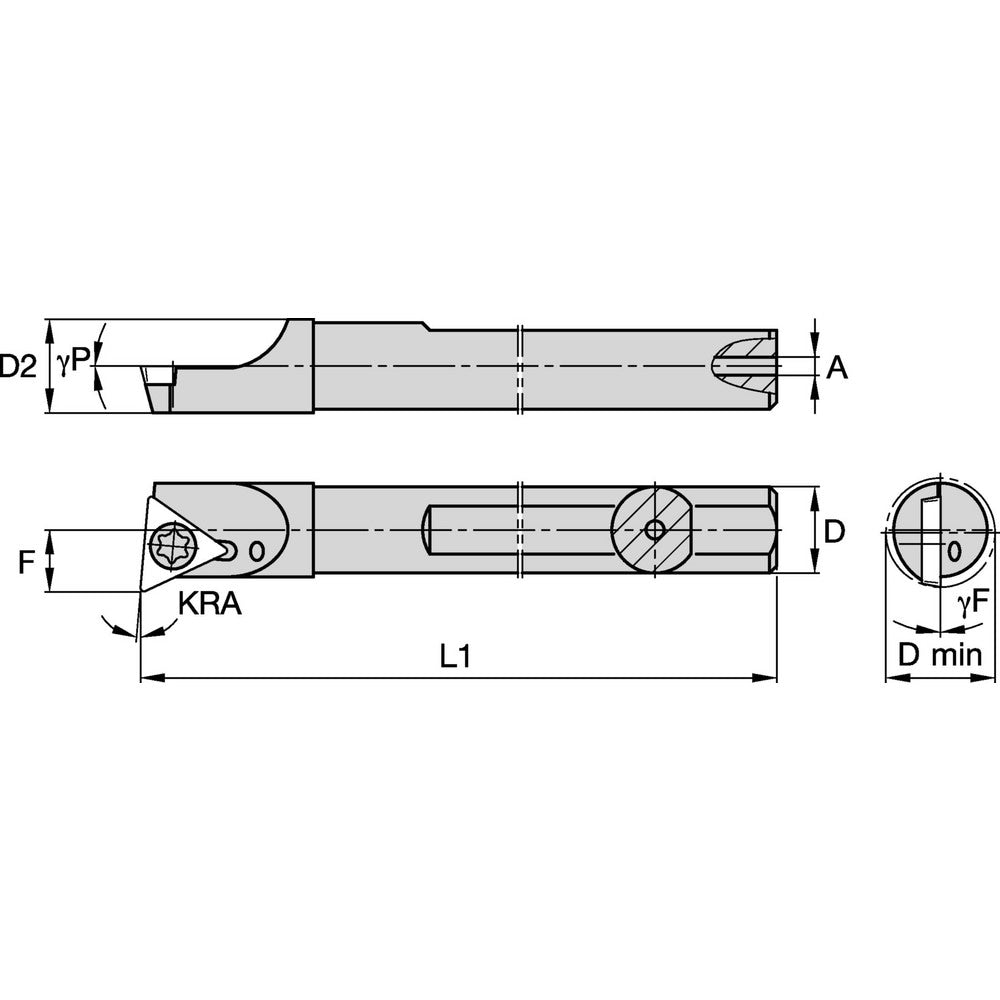

Product Specifications

Minimum Bore Diameter (Decimal Inch) 0.3580
Maximum Bore Depth (Decimal Inch) 0.9375
Toolholder Style FSBI
Tool Material Steel
Shank Diameter (Decimal Inch) 0.3125
Hand of Holder Left Hand
Shank Diameter (Inch) 5/16
Overall Length (Decimal Inch) 4.0000
Overall Length (Inch) 4
Compatible Insert Size Code TD..130805
Insert Holding Method Screw
Compatible Insert Shape Triangle
Insert Included No
Rake Positive
Cutting Direction Left Hand
Rake Angle 0.000
Lead Angle -5.000
Series FSBI
Insert Inscribed Circle (Decimal Inch) 0.1598
Compatible Insert Thickness (Decimal Inch) 0.0469
Compatible Insert Thickness (mm) 1.19
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (Decimal Inch) 0.3433
Center to Cutting Edge (Decimal Inch) 0.1870
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Neck Diameter (Decimal Inch) 0.3220
Insert Thickness (Decimal Inch) 0.0469
Insert Thickness (Inch) 3/64
Coolant Hole Diameter (Decimal Inch) 0.0600
Number of Inserts Included in Order 0
Manufacturers Catalog Number FSBI31245L
Radial Rake 5
Coolant Through Yes
$99.48
