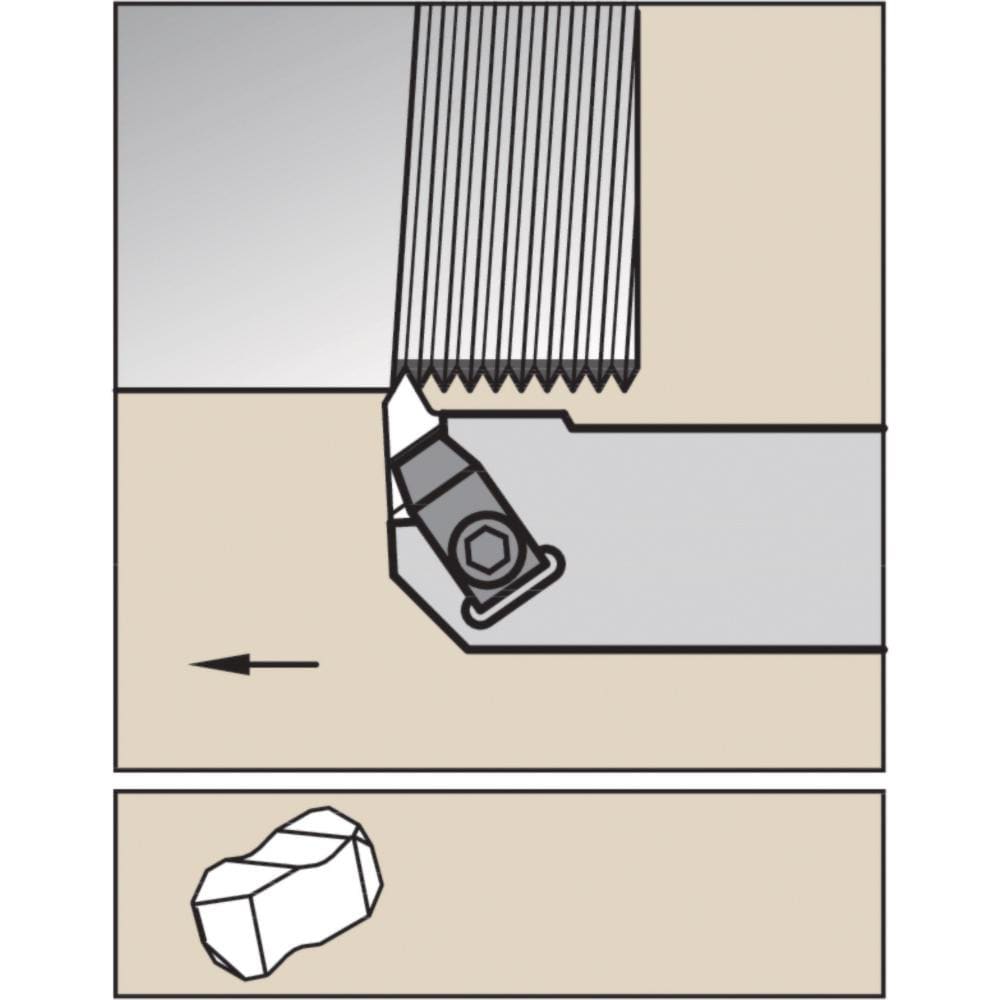

Brand: Widia / Part #: 3637503

Brand: Widia / Part #: 3637503


Item #: 97988661
Brand: Widia
Model #: 3637503

Product Specifications

Internal or External External
Toolholder Type External Grooving
Insert Seat Size 2
Hand of Holder Left Hand
Cutting Direction Left Hand
Maximum Depth of Cut (Decimal Inch) 0.1382
Minimum Groove Width (Decimal Inch) 0.0200
Toolholder Style NE
Maximum Groove Width (Decimal Inch) 0.7870
Insert Holding Method Clamp
Insert Compatibility N.2R
Compatible Insert Size Code 2
Shank Width/Diameter (Decimal Inch) 0.7500
Shank Height (Decimal Inch) 4.0000
Series NE
Shank Length (Decimal Inch) 4.0000
Overall Length (Decimal Inch) 4.5000
Multi-use Tool Yes
Cutting Tool Application Grooving; Threading
Back of Bar to Cutting Edge (Decimal Inch) 1.0000
Head Height (Decimal Inch) 0.7500
Head Length (Decimal Inch) 1.0000
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Multi-Use Application Yes
Maximum Bore Depth (Decimal Inch) 1.0000
Mount Type Shank
Manufacturers Catalog Number NEL122B
Toolholder Material Steel
Insert Hand Left Hand
Complete Insert Compatibility N.2R
Minimum Bore Diameter (Decimal Inch) 0.0000
Coolant Through No
$100.17
