Brand: Widia / Part #: 3632133

Brand: Widia / Part #: 3632133


Item #: 97989529
Brand: Widia
Model #: 3632133

Product Specifications

Internal or External External

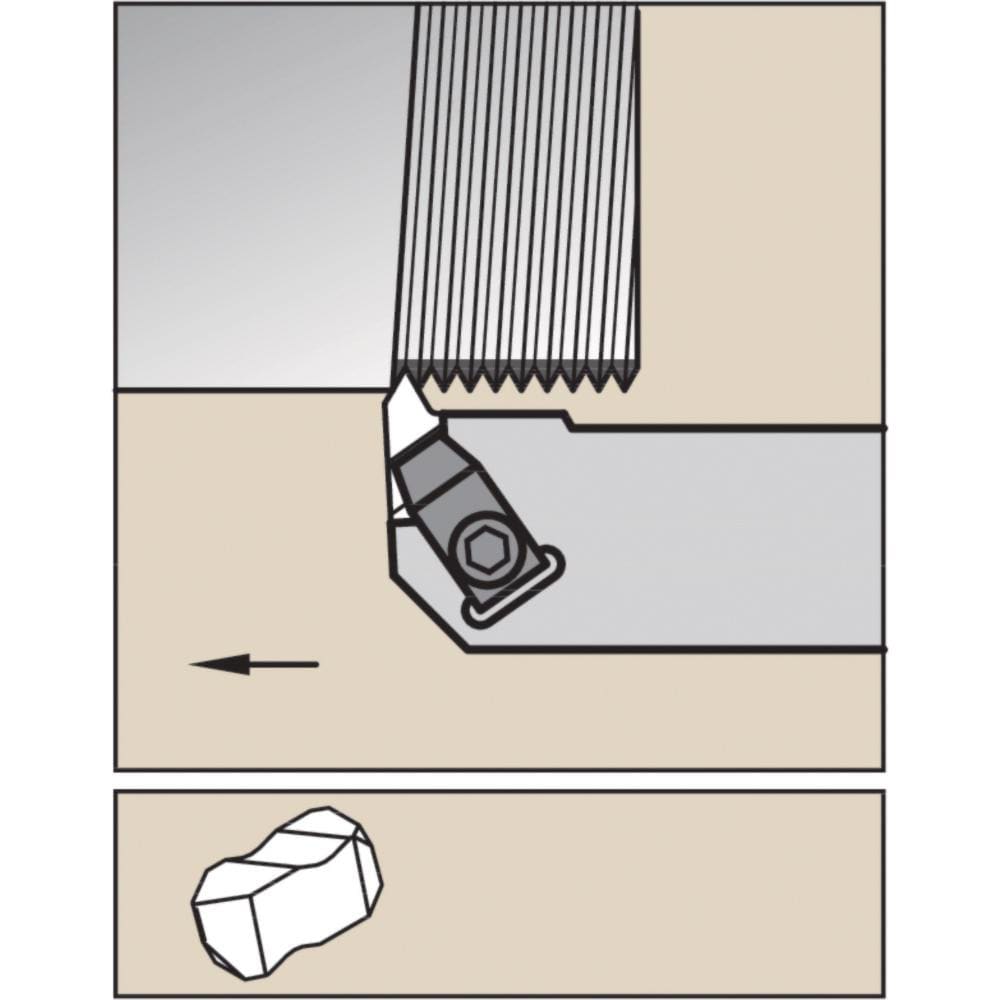

Toolholder Type External Grooving
Insert Seat Size 3
Hand of Holder Right Hand
Cutting Direction Right Hand
Maximum Depth of Cut (Decimal Inch) 0.2098
Minimum Groove Width (Decimal Inch) 0.0390
Toolholder Style NE
Maximum Groove Width (Decimal Inch) 0.1250
Insert Holding Method Clamp
Insert Compatibility N.3L
Compatible Insert Size Code 3
Shank Width/Diameter (Decimal Inch) 0.7500
Shank Height (Decimal Inch) 3.7500
Series NE
Shank Length (Decimal Inch) 3.7500
Overall Length (Decimal Inch) 4.5000
Multi-use Tool Yes
Cutting Tool Application Grooving; Threading
Back of Bar to Cutting Edge (Decimal Inch) 1.1250
Head Height (Decimal Inch) 0.7500
Head Length (Decimal Inch) 2.0000
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Multi-Use Application Yes
Maximum Bore Depth (Decimal Inch) 2.0000
Minimum Axial Groove Inside Diameter(mm) 2.3750
Mount Type Shank
Manufacturers Catalog Number NER123B
Toolholder Material Steel
Insert Hand Right Hand
Complete Insert Compatibility N.3L
Minimum Bore Diameter (Decimal Inch) 2.3750
Coolant Through No
$100.17
