Brand: Widia / Part #: 2031104
Item #: 02771137
Brand: Widia
Model #: 2031104
Product Specifications
| Minimum Bore Diameter (mm) | 10.000 |
| Maximum Bore Depth (mm) | 30.00 |
| Toolholder Style | STCCN |
| Tool Material | Steel |
| Shank Diameter (mm) | 10.0000 |
| Hand of Holder | Neutral |
| Overall Length (mm) | 40.0000 |
| Compatible Insert Size Code | TC..1102.. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Neutral |
| Rake Angle | 0.000 |
| Lead Angle | 90.000 |
| Series | LR 90? Boring Bar |
| Insert Inscribed Circle (Inch) | 1/4 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Compatible Insert Thickness (mm) | 2.38 |
| Multi-use Tool | Yes |

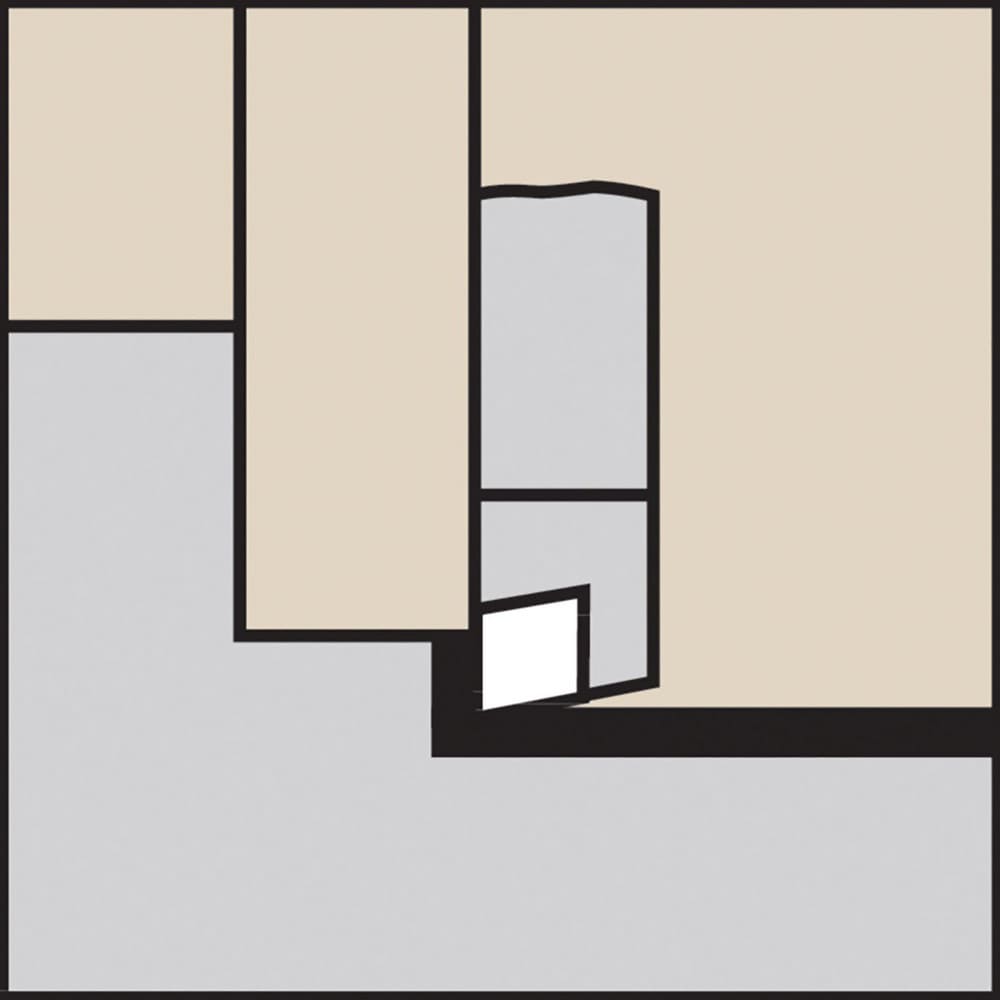

| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 10.20 |
| Center to Cutting Edge (mm) | 5.20 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | S10BSTCCN11 |
| Shank Height (Decimal Inch) | 0.3543 |
| Radial Rake | 0 |
| Coolant Through | No |
