Brand: Widia / Part #: 3636542

Brand: Widia / Part #: 3636542


Item #: 98000102
Brand: Widia
Model #: 3636542

Product Specifications

Internal or External External
Toolholder Type External Grooving
Insert Seat Size 2
Hand of Holder Right Hand
Cutting Direction Right Hand
Maximum Depth of Cut (mm) 3.51
Minimum Groove Width (mm) 0.00
Maximum Groove Width (mm) 2.00
Toolholder Style NS
Insert Holding Method Clamp
Insert Compatibility N.2R
Compatible Insert Size Code 2
Shank Width/Diameter (mm) 16.00
Shank Height (mm) 82.10
Series NS
Shank Length (mm) 82.100
Overall Length (mm) 100.0000
Multi-use Tool Yes

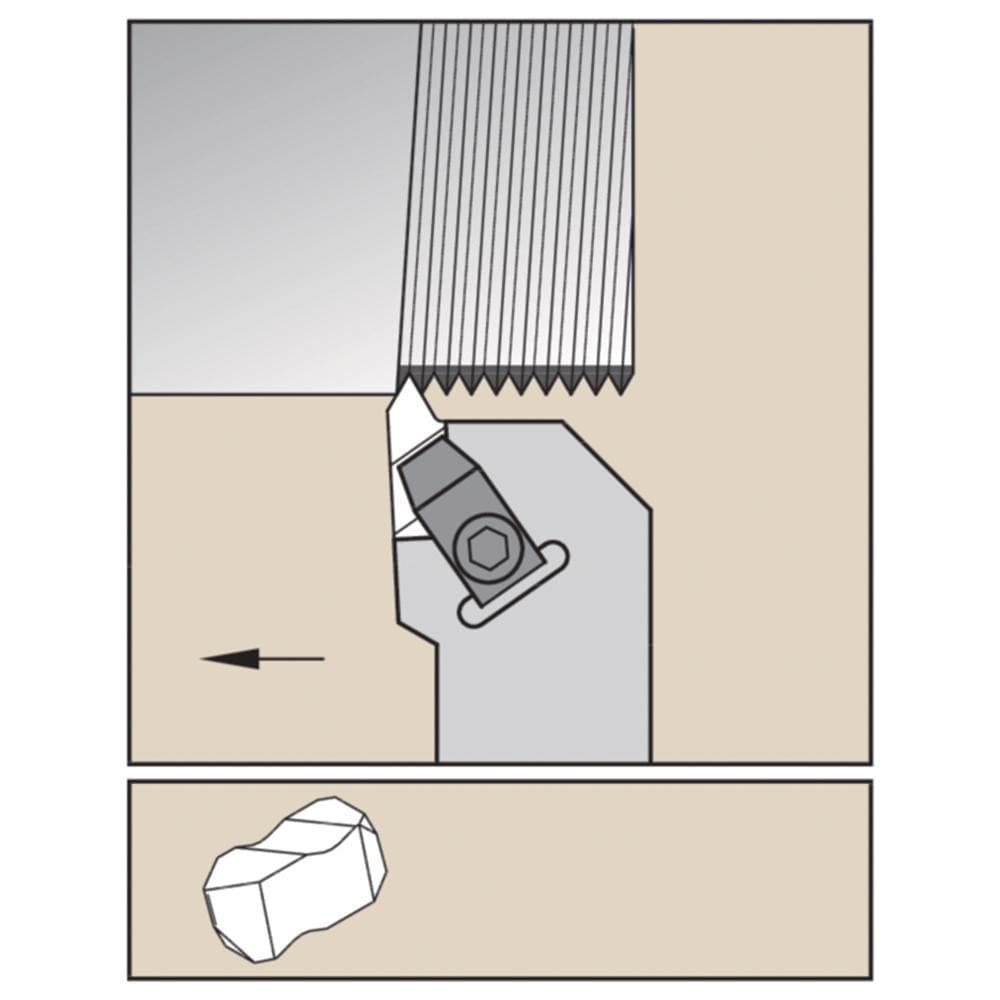

Cutting Tool Application Grooving; Threading
Back of Bar to Cutting Edge (mm) 20.00
Head Height (mm) 16.000
Head Length (mm) 0.00
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Multi-Use Application Yes
Mount Type Shank
Manufacturers Catalog Number NSR1616H2
Toolholder Material Steel
Insert Hand Right Hand
Complete Insert Compatibility N.2R
Coolant Through No
Minimum Bore Diameter (mm) 0.000
Maximum Bore Depth (mm) 0.00
$95.71
