Brand: Widia / Part #: 5696549

Brand: Widia / Part #: 5696549


Item #: 97482541
Brand: Widia
Model #: 5696549

Product Specifications

Cutting Direction Right Hand
Hand of Holder Right Hand
Compatible Insert Size Code 43.

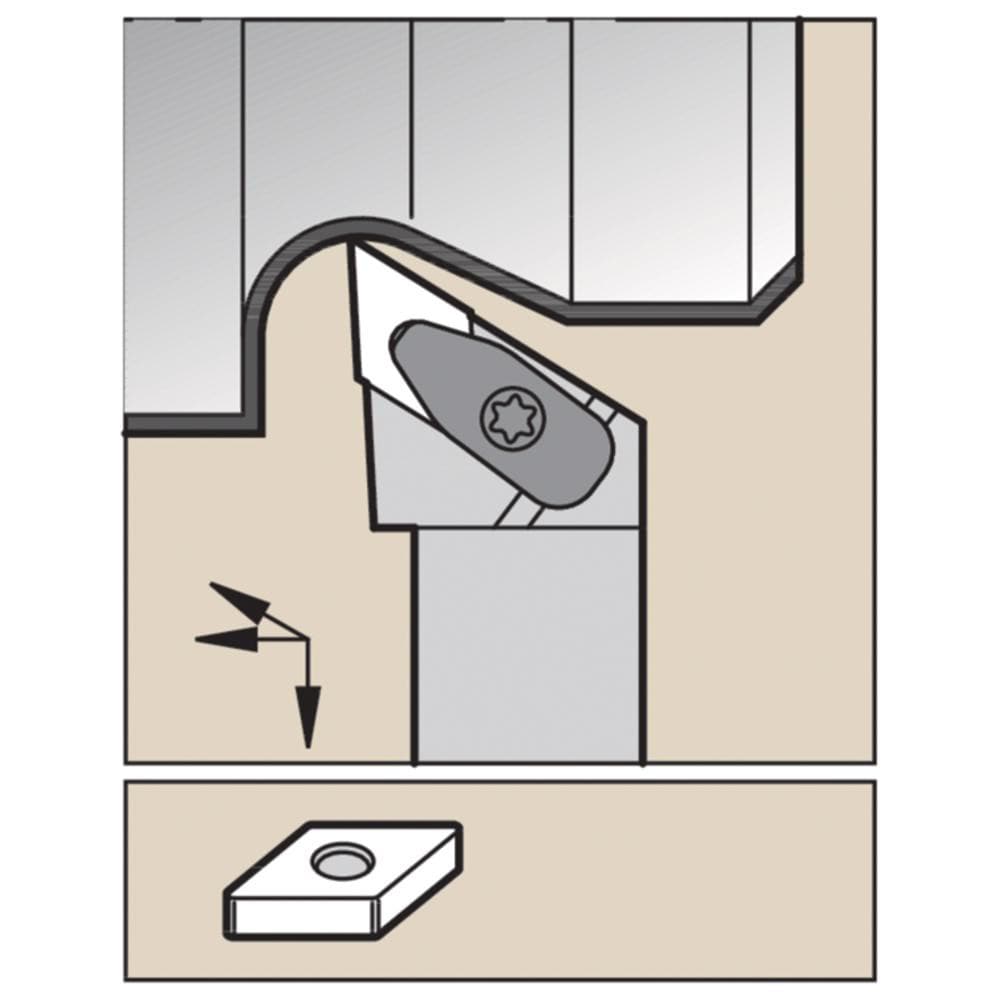

Toolholder Style DDJNR
Rake Negative
Rake Angle -5 (Axial);-5 (Radial)
Multi-use Tool Yes
Lead Angle 93.000
Insert Holding Method Clamp
Shank Width (Decimal Inch) 1.2500
Shank Width (Inch) 1-1/4
Insert Compatibility DN..43.
Shank Height (Decimal Inch) 1.2500
Shank Height (Inch) 1-1/4
Series DDJN
Overall Length (Decimal Inch) 6.0000
Overall Length (Inch) 6
Cutting Tool Application Copying; Turning
Head Length (Decimal Inch) 1.2500
Back of Bar to Cutting Edge (Inch) 1-1/2
Back of Bar to Cutting Edge (Decimal Inch) 1.5000
Primary Workpiece Material Universal
Insert Inscribed Circle (Decimal Inch) 0.5000
Insert Inscribed Circle (Inch) 1/2
Insert Width (Inch) 1/2
Insert Width (Decimal Inch) 0.5000
Toolholder Material Steel
ISO Number DDJNR204DKC3
Complete Insert Compatibility DN..
Coolant Through No
Insert Thickness (Decimal Inch) 0.2500
$124.15
