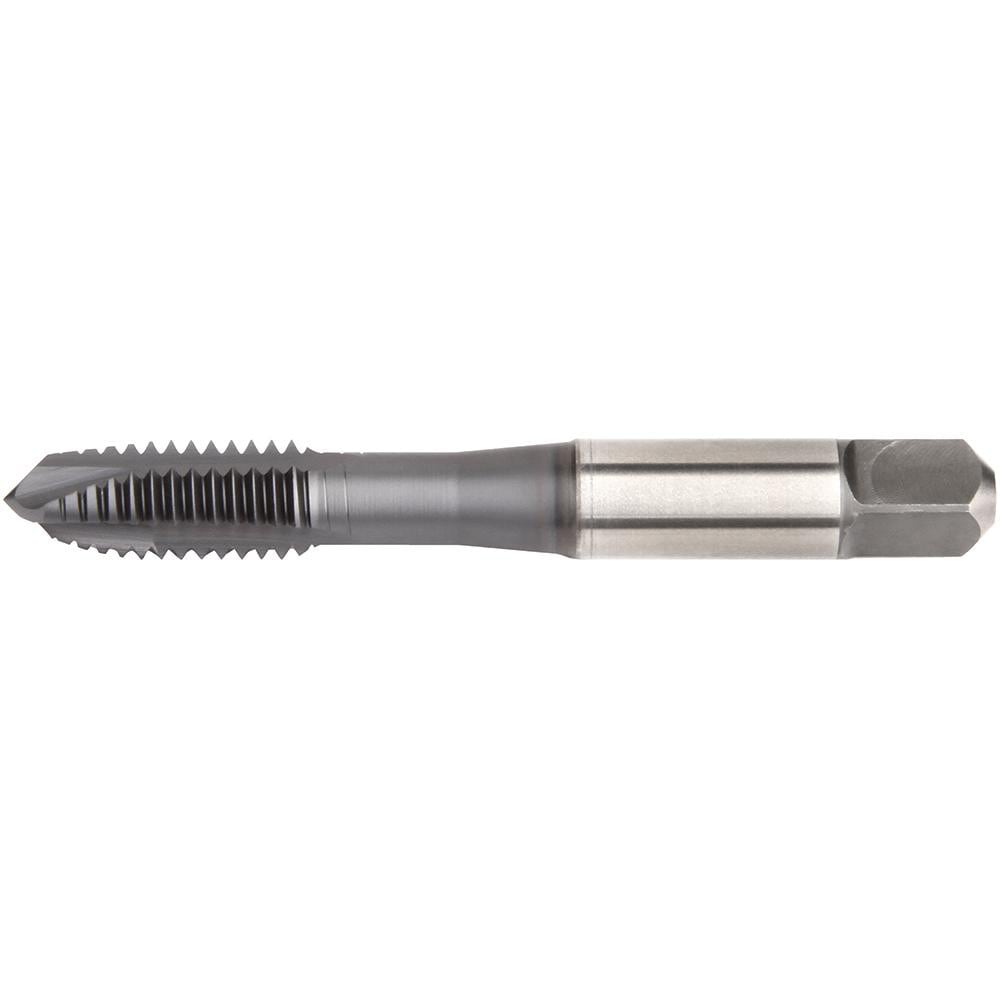

Brand: Widia / Part #: 5366488
Item #: 90959206
Brand: Widia
Model #: 5366488
Product Specifications
| Thread Size (mm) | M18x2.5 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | D7 |
| Class Of Fit | D7 |
| Coating/Finish | TiCN |
| Threads per Inch | 10 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 48.00 |
| Thread Pitch (mm) | 2.50 |
| Thread Standard | UNC |
| Material Grade | WP42EG |
| Thread Length (mm) | 31.00 |
| Overall Length (mm) | 102.4000 |
| Shank Diameter (Decimal Inch) | 0.5420 |
| Square Length (mm) | 16.00 |
| Square Size (mm) | 10.24 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
