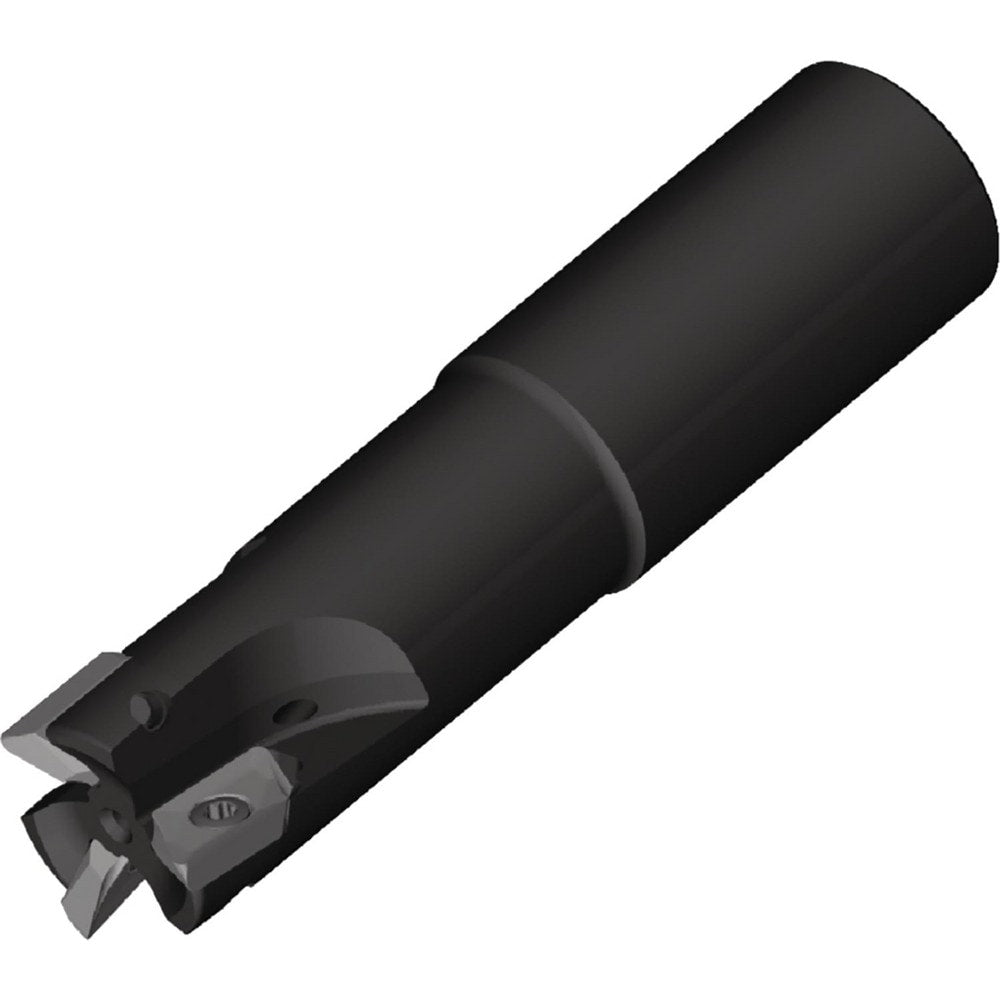

Brand: Widia / Part #: 6425258
Item #: 97022719
Brand: Widia
Model #: 6425258
Product Specifications
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 16.00 |
| Cutter Style | VHSC |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.0000 |
| Maximum Ramping Angle | 14.7 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 131.0000 |
| Tool Material | Steel |
| Series | VHSC |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (mm) | 56.000 |
| Head Length (mm) | 75.00 |
| Maximum RPM | 50000.000 |
| Tool Application | Facing; Pocketing; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Aluminum Alloy |
| Primary Workpiece Material Code | N |
| End Mill Type | Indexable Square Shoulder End Mill |
| Coolant Hole Diameter (mm) | 5.00 |
| Rake | Positive |
| Complete Insert Compatibility | XDET16M5 |
| Insert Compatibility | XDET16M5 |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| ISO Number | VHSC025Z02A25XD16 |
| Manufacturers Catalog Number | VHSC025Z02A25XD16 |
| Usable Length (mm) | 75.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
