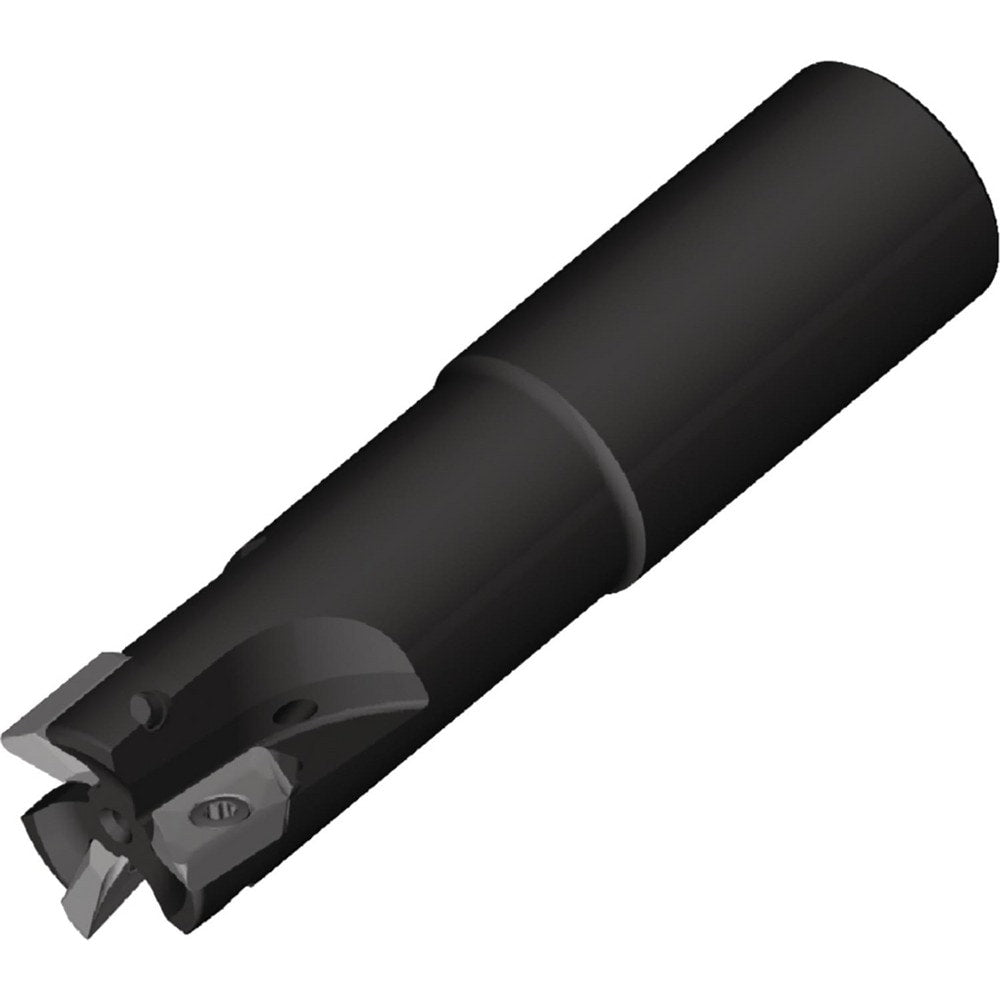

Brand: Widia / Part #: 6425425
Item #: 97030522
Brand: Widia
Model #: 6425425
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Cutter Style | VHSC |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 14.7 ? |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 5.0300 |
| Tool Material | Steel |
| Series | VHSC |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.2800 |
| Head Length (Decimal Inch) | 2.7500 |
| Maximum RPM | 50000.000 |
| Tool Application | Facing; Pocketing; Ramping |
| Tool Performance | High Performance |
| Primary Workpiece Material | Aluminum Alloy |
| Primary Workpiece Material Code | N |
| End Mill Type | Indexable Square Shoulder End Mill |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Rake | Positive |
| Complete Insert Compatibility | XDET16M5 |
| Insert Compatibility | XDET16M5 |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| ISO Number | VHSC100Z02C100XD16 |
| Manufacturers Catalog Number | VHSC100Z02C100XD16 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 2.7500 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
