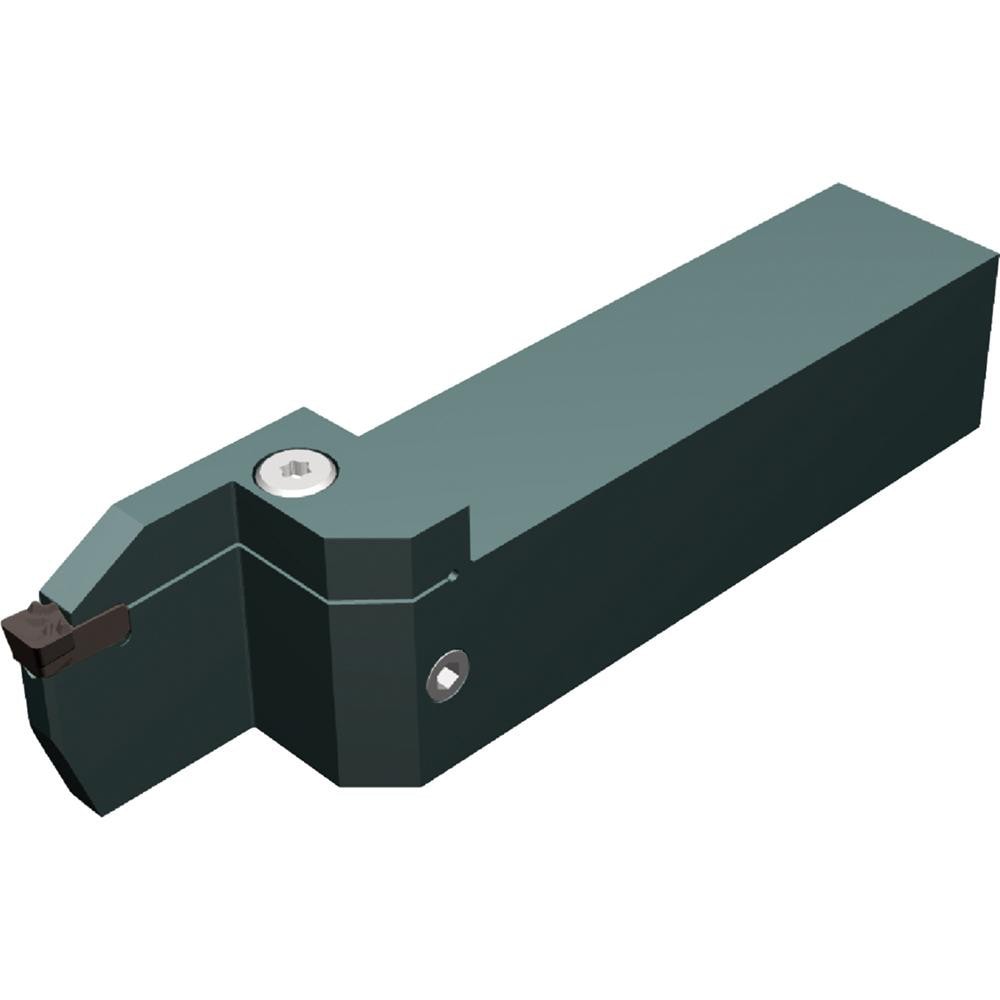

Brand: Widia / Part #: 6461886

Brand: Widia / Part #: 6461886


Item #: 98283906
Brand: Widia
Model #: 6461886

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 0.8660
Hand of Holder Right Hand
Maximum Groove Width (Decimal Inch) 0.0790
Minimum Groove Width (Decimal Inch) 0.0787
Toolholder Style WGCSM
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0200
Insert Compatibility WG0200M02P02
Shank Height (Inch) 3/4
Shank Height (Decimal Inch) 0.7500
Shank Length (Decimal Inch) 3.0040
Shank Width/Diameter (Decimal Inch) 0.7500
Shank Width/Diameter (Inch) 3/4
Series WGC
Overall Length (Decimal Inch) 4.5000
Cutting Tool Application Grooving; Facing; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 0.7510
Head Height (mm) 28.050
Head Length (Decimal Inch) 1.4961
Primary Workpiece Material Universal
Insert Seat Size 2.0
Coolant Through No
$121.65
