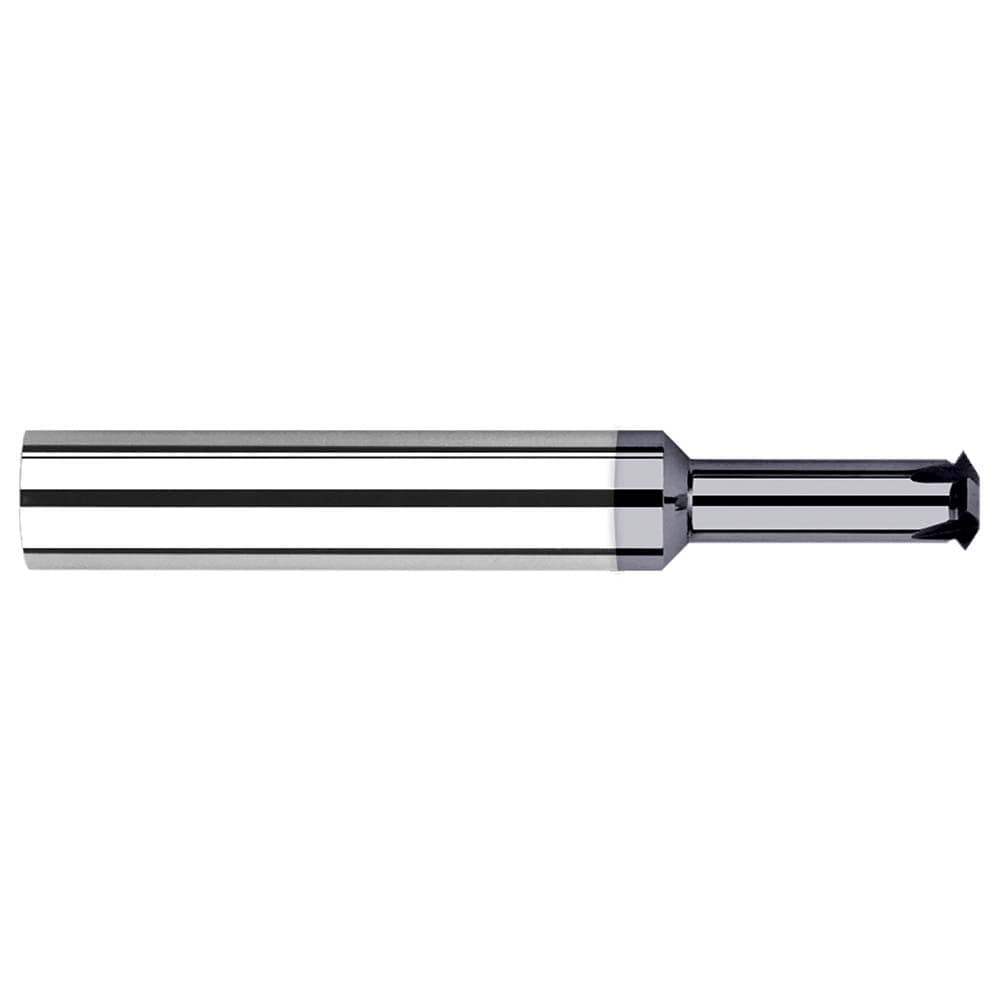

Brand: Harvey Tool / Part #: 821460-C3
Item #: 82498858
Brand: Harvey Tool
Model #: 821460-C3
Product Specifications
| Maximum Threads Per Inch | 40 |
| Minimum Pitch (Decimal Inch) | 0.0625 |
| Minimum Threads Per Inch | 16 |
| Maximum Pitch (Decimal Inch) | 0.0250 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Thread Size | 3/8 in-16 - 3/8 in-40 |
| Thread Depth (Decimal Inch) | 1.1250 |
| Shank Diameter (Inch) | 3/8 |
| Cutting Diameter (Decimal Inch) | 0.3000 |
| Minimum Nominal Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Neck Diameter (Decimal Inch) | 0.2188 |
| Shank Length (Decimal Inch) | 1.3750 |
| Series | Thread Milling Cutters - Single Form - UN Threads |
| Thread Standard | UN 60 Degree |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
