Brand: Widia / Part #: 2021640
Item #: 12606380
Brand: Widia
Model #: 2021640

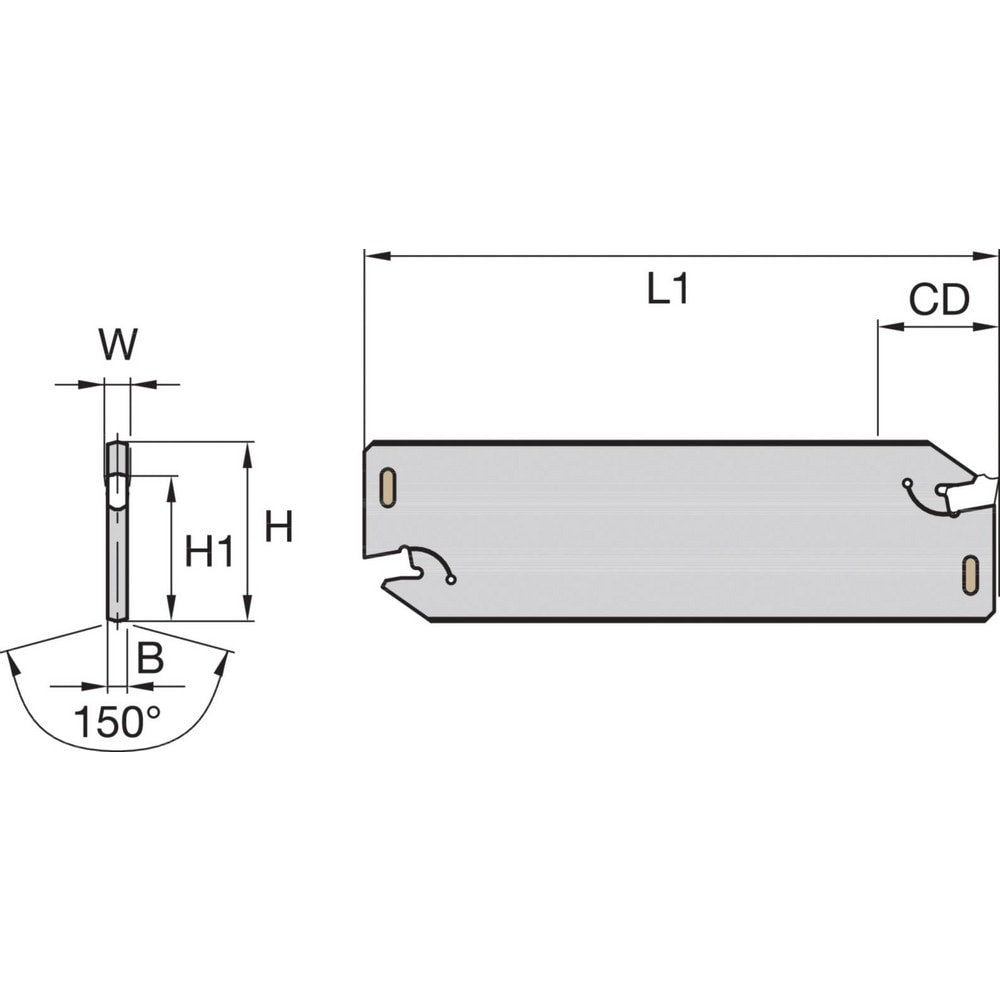

Product Specifications
| End Type | Double-Ended |
| Cutting Direction | Neutral |
| Hand | Neutral |
| Blade Height (mm) | 26.00 |
| Blade Width (mm) | 3.10 |
| Blade Overall Length (mm) | 110.00 |
| Blade Style | 122513 |
| Compatible Insert Style | 123567.3.. |
| Compatible Insert Size Code | 3 |
| Tool Material | Steel |
| Insert Holding Method | Spring Clamp |
| Maximum Workpiece Diameter (mm) | 80.00 |
| Series | ProGroove |
| Tool Block Style | 3225122 |
| Insert Style | ProGroove |
| Cutting Tool Application | Cut-Off |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 3 |
| Maximum Depth of Cut (mm) | 40.00 |
| Cutting Height (mm) | 21.40 |
| Minimum Insert Width (mm) | 3.00 |
| Maximum Insert Width (mm) | 3.00 |
| Blade Type | Indexable Insert Blade |
