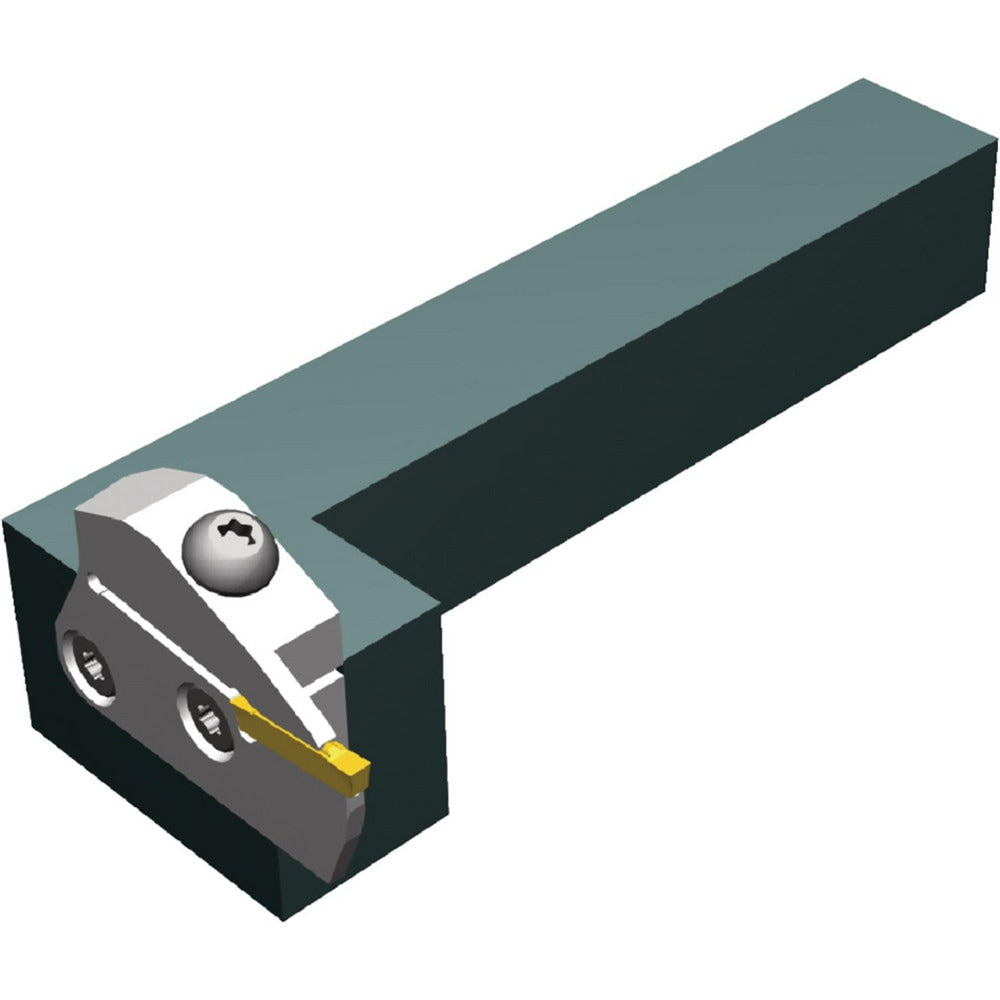

Brand: Widia / Part #: 5514978

Brand: Widia / Part #: 5514978


Item #: 98286230
Brand: Widia
Model #: 5514978

Product Specifications

Internal or External External
Maximum Depth of Cut (mm) 22.00
Hand of Holder Left Hand
Maximum Groove Width (mm) 6.00
Minimum Groove Width (mm) 1.40
Toolholder Style WGMEL
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0600; 0400; 0500; 0200; 0300; 0100; 094
Shank Height (mm) 25.00
Shank Length (mm) 125.250
Shank Width/Diameter (mm) 25.00
Series WMT
Overall Length (mm) 150.2500
Cutting Tool Application Grooving; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 1.6830
Head Height (mm) 31.840
Head Length (mm) 25.00
Primary Workpiece Material Universal
Insert Seat Size 100.0
Coolant Through No
$128.87
