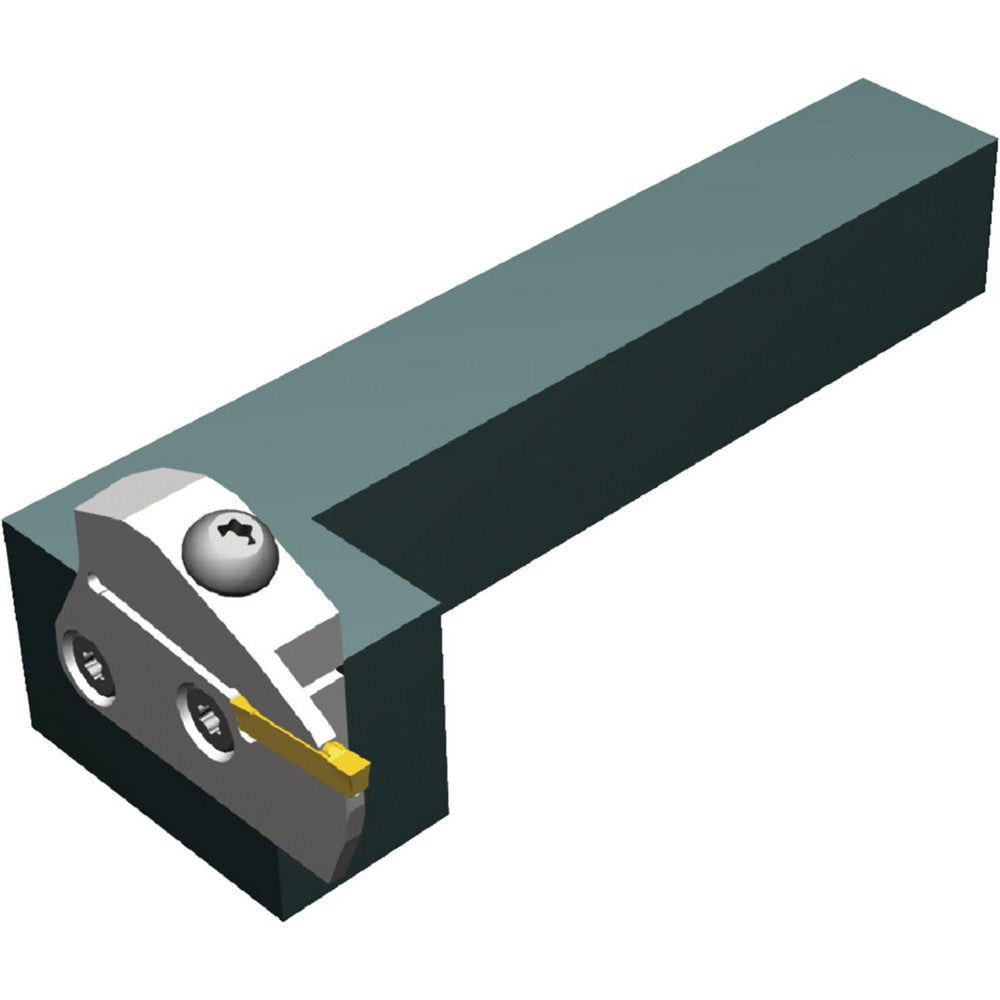

Brand: Widia / Part #: 5514976

Brand: Widia / Part #: 5514976


Item #: 98286867
Brand: Widia
Model #: 5514976

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 0.8660
Hand of Holder Left Hand
Maximum Groove Width (Decimal Inch) 0.2360
Minimum Groove Width (Decimal Inch) 0.0551
Toolholder Style WGMEL
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0600; 0400; 0500; 0200; 0300; 0100; 094
Shank Height (Inch) 1
Shank Height (Decimal Inch) 1.0000
Shank Length (Decimal Inch) 4.9610
Shank Width/Diameter (Decimal Inch) 1.0000
Shank Width/Diameter (Inch) 1
Series WMT
Overall Length (Decimal Inch) 5.9610
Cutting Tool Application Grooving; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 1.6960
Head Height (mm) 31.560
Head Length (Decimal Inch) 1.0000
Primary Workpiece Material Universal
Insert Seat Size 100.0
Coolant Through No
$128.87
