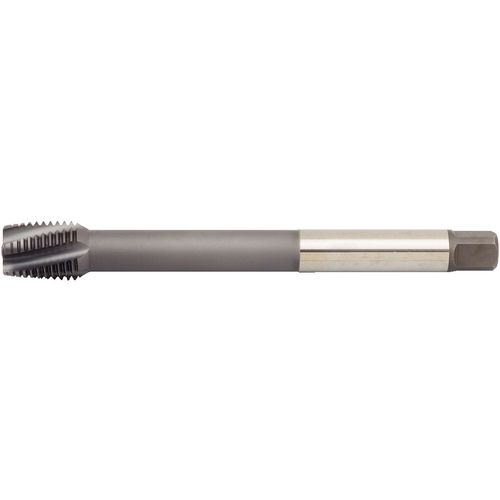

GT205122 M24X3 6H LH SF PLG X-LNG
Item #: WK344033765
Brand: Widia
Model #: 4033765
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M24 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 3 mm |
| Chamfer | 3P-5P |
| Thread Standard | Metric |
| Coating | TiCN |
| Overall Length (OAL) | 200 mm |
| Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 30 mm |
| Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 5 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees |
| Square Size | 14.41 mm |
| Cutting Edge Material | HSSCoPM |
| Measurement Type | Metric |
