Brand: Widia / Part #: 5697742

Brand: Widia / Part #: 5697742


Item #: 99506859
Brand: Widia
Model #: 5697742

Product Specifications

Cutting Direction Neutral
Hand of Holder Neutral
Compatible Insert Size Code 43.
Toolholder Style DSDNN
Rake Negative
Rake Angle 0 (Axial);0 (Radial)
Multi-use Tool Yes
Lead Angle 45.000
Insert Holding Method Clamp
Shank Width (Decimal Inch) 1.2500
Shank Width (Inch) 1-1/4
Insert Compatibility SN..43.
Shank Height (Decimal Inch) 1.2500
Shank Height (Inch) 1-1/4
Series DSDN
Overall Length (Decimal Inch) 6.0000
Overall Length (Inch) 6

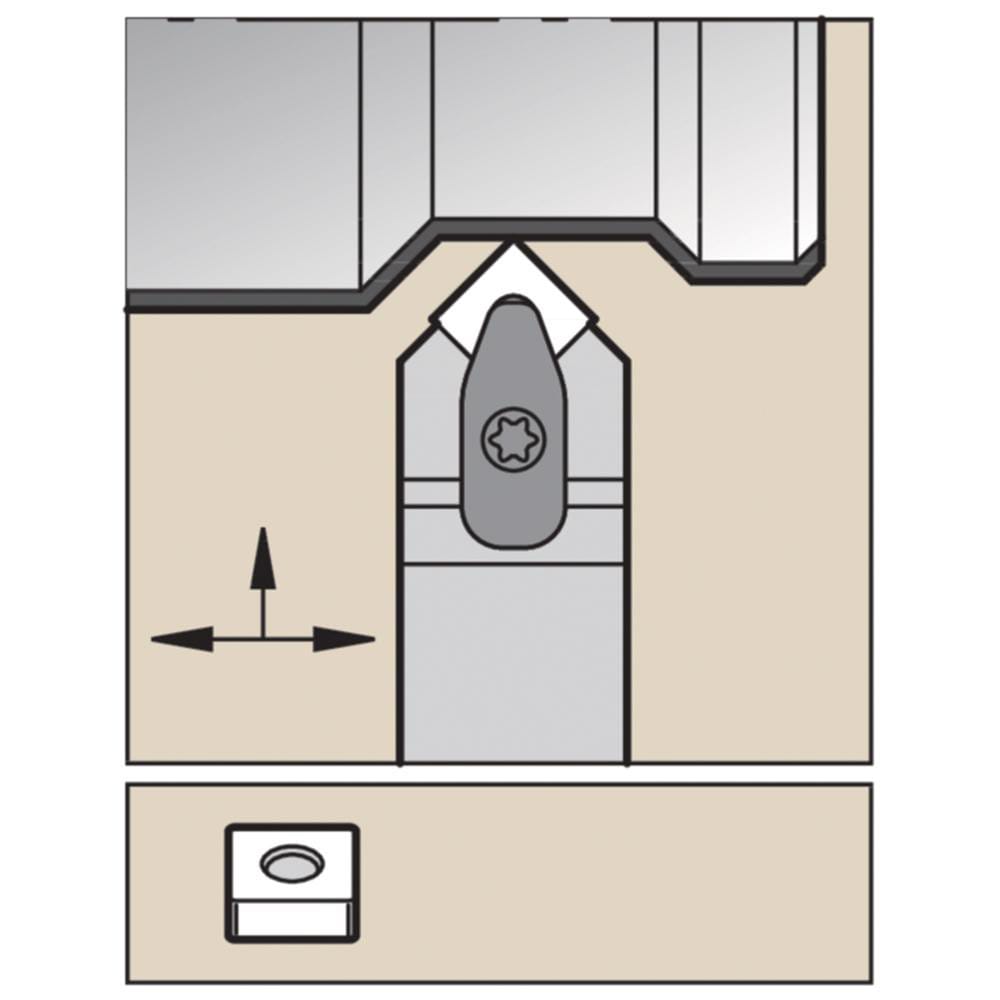

Cutting Tool Application Facing; Copying; Turning
Head Length (Decimal Inch) 1.4400
Back of Bar to Cutting Edge (Inch) 5/8
Back of Bar to Cutting Edge (Decimal Inch) 0.6250
Primary Workpiece Material Universal
Insert Inscribed Circle (Decimal Inch) 0.5000
Insert Inscribed Circle (Inch) 1/2
Insert Width (Inch) 1/2
Insert Width (Decimal Inch) 0.5000
Toolholder Material Steel
ISO Number DSDNN204KC3
Complete Insert Compatibility SN..
Coolant Through No
Insert Thickness (Decimal Inch) 0.1875
$106.27
