Brand: Widia / Part #: 3641676
Item #: 97988133
Brand: Widia
Model #: 3641676
Product Specifications
| Internal or External | External |
| Toolholder Type | External Grooving |
| Insert Seat Size | 2 |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 3.51 |
| Minimum Groove Width (mm) | 0.00 |
| Maximum Groove Width (mm) | 2.00 |
| Toolholder Style | NE |
| Insert Holding Method | Clamp |
| Insert Compatibility | N.2R |
| Compatible Insert Size Code | 2 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Height (mm) | 136.25 |
| Series | NE |
| Shank Length (mm) | 136.250 |
| Overall Length (mm) | 150.0000 |
| Multi-use Tool | Yes |

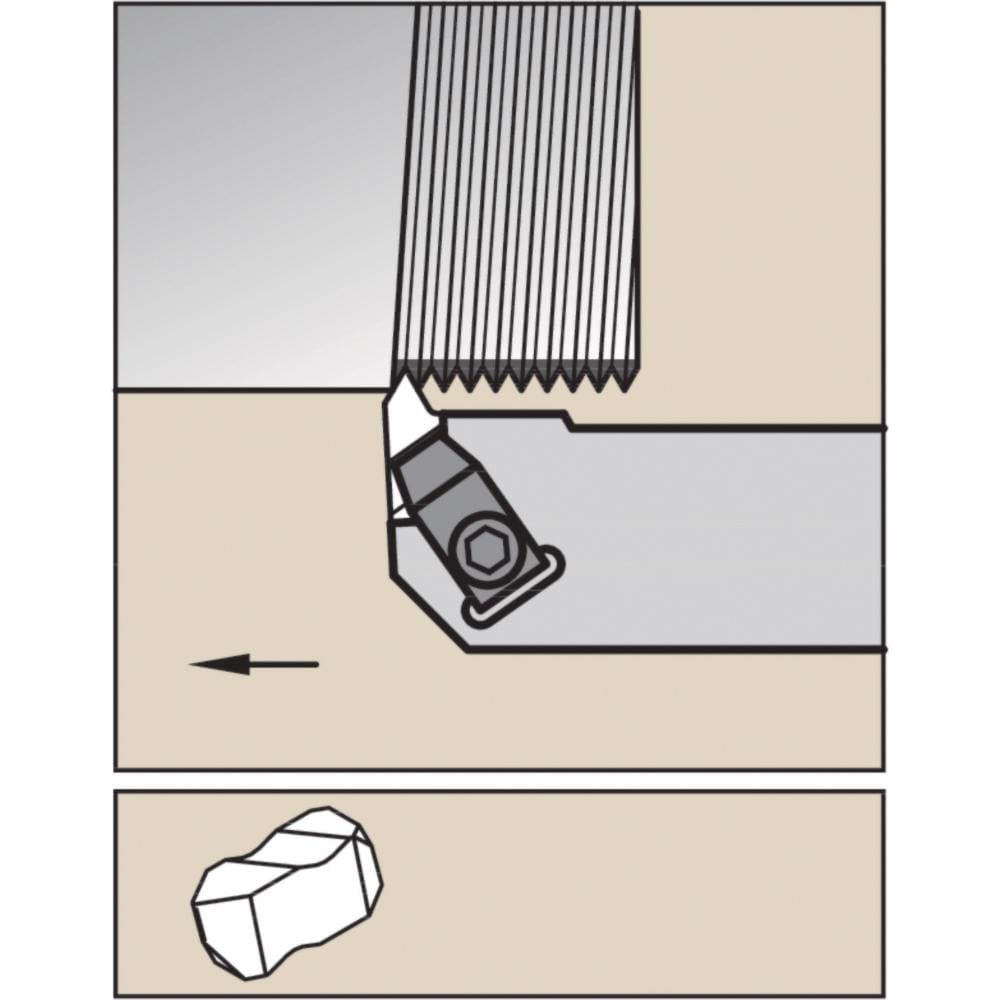

| Cutting Tool Application | Grooving; Threading |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Head Height (mm) | 25.400 |
| Head Length (mm) | 25.40 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Multi-Use Application | Yes |
| Mount Type | Shank |
| Manufacturers Catalog Number | NEL2525M2 |
| Toolholder Material | Steel |
| Insert Hand | Left Hand |
| Complete Insert Compatibility | N.2R |
| Coolant Through | No |
| Minimum Bore Diameter (mm) | 0.000 |
| Maximum Bore Depth (mm) | 25.40 |
