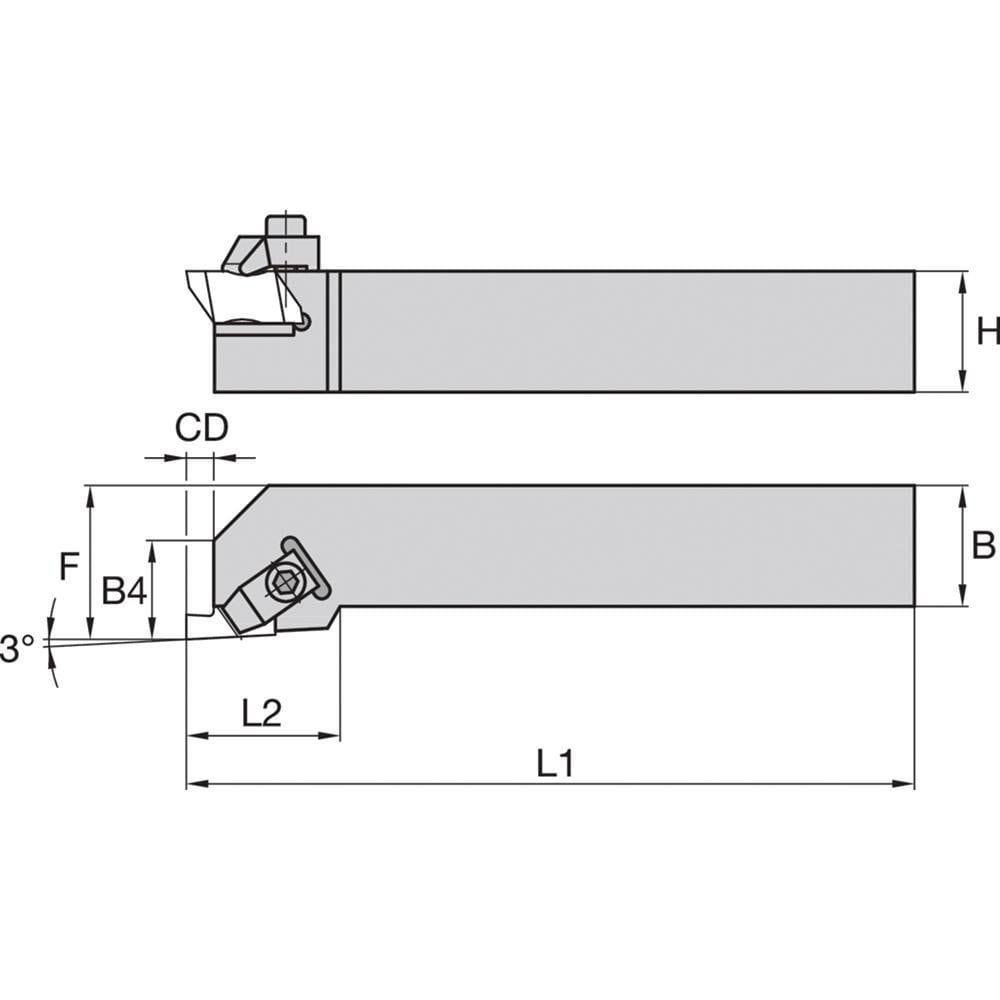

Brand: Widia / Part #: 3639040

Brand: Widia / Part #: 3639040


Item #: 98005325
Brand: Widia
Model #: 3639040

Product Specifications

Internal or External External
Toolholder Type External Grooving
Insert Seat Size 6
Hand of Holder Left Hand
Cutting Direction Left Hand
Maximum Depth of Cut (Decimal Inch) 0.2941
Minimum Groove Width (Decimal Inch) 0.0000
Toolholder Style NS
Maximum Groove Width (Decimal Inch) 0.2500
Insert Holding Method Clamp
Insert Compatibility N.4L
Compatible Insert Size Code 6
Shank Width/Diameter (Decimal Inch) 1.0000
Shank Height (Decimal Inch) 4.6200
Series NS (with Shim)
Shank Length (Decimal Inch) 4.6200
Overall Length (Decimal Inch) 6.0000
Multi-use Tool Yes
Cutting Tool Application Grooving; Threading
Back of Bar to Cutting Edge (Decimal Inch) 1.2500
Head Height (Decimal Inch) 1.0000
Head Length (Decimal Inch) 0.0000
Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; H; K; M; N
Multi-Use Application Yes
Maximum Bore Depth (Decimal Inch) 0.0000
Mount Type Shank
Manufacturers Catalog Number NSL164D
Toolholder Material Steel
Insert Hand Left Hand
Complete Insert Compatibility N.4L
Minimum Bore Diameter (Decimal Inch) 0.0000
Coolant Through No
$104.48
