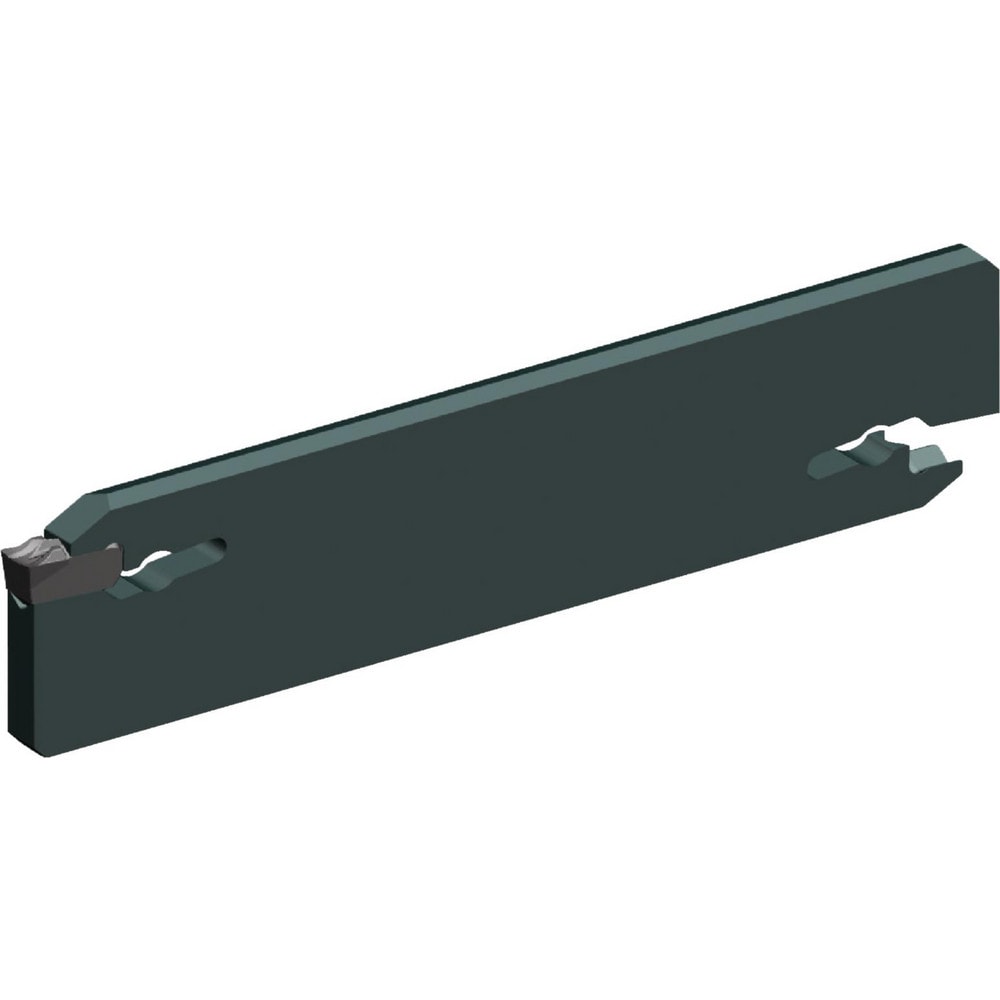

Brand: Widia / Part #: 6499214

Brand: Widia / Part #: 6499214


Item #: 32900201
Brand: Widia
Model #: 6499214

Product Specifications

End Type Double-Ended
Cutting Direction Neutral
Hand Neutral
Blade Height (mm) 26.00
Blade Height (Decimal Inch) 1.0225
Blade Width (Decimal Inch) 0.0945
Blade Width (mm) 2.40
Blade Overall Length (Decimal Inch) 4.3404
Blade Overall Length (mm) 110.25
Blade Style WGC
Compatible Insert Style WGC
Compatible Insert Size Code 3
Tool Material Steel
Insert Holding Method Spring Clamp
Maximum Workpiece Diameter (mm) 80.00
Maximum Workpiece Diameter (Decimal Inch) 3.1504
Series WGC
Insert Style WGC
Cutting Tool Application Grooving; Cut-Off
Primary Workpiece Material Universal
Insert Seat Size 3
Maximum Depth of Cut (Decimal Inch) 1.5752
Maximum Depth of Cut (mm) 40.00
Minimum Workpiece Diameter (Decimal Inch) 0.0000
Cutting Height (mm) 21.45
Cutting Height (Decimal Inch) 0.8445
Minimum Insert Width (Decimal Inch) 0.1181
Minimum Insert Width (mm) 3.00
Maximum Insert Width (mm) 3.99
Maximum Insert Width (Decimal Inch) 0.1571
Manufacturers Catalog Number WGCBSN26J0340
$105.43
