Brand: Widia / Part #: 5696748

Brand: Widia / Part #: 5696748


Item #: 98265424
Brand: Widia
Model #: 5696748

Product Specifications

Cutting Direction Neutral
Hand of Holder Neutral
Compatible Insert Size Code 1604..

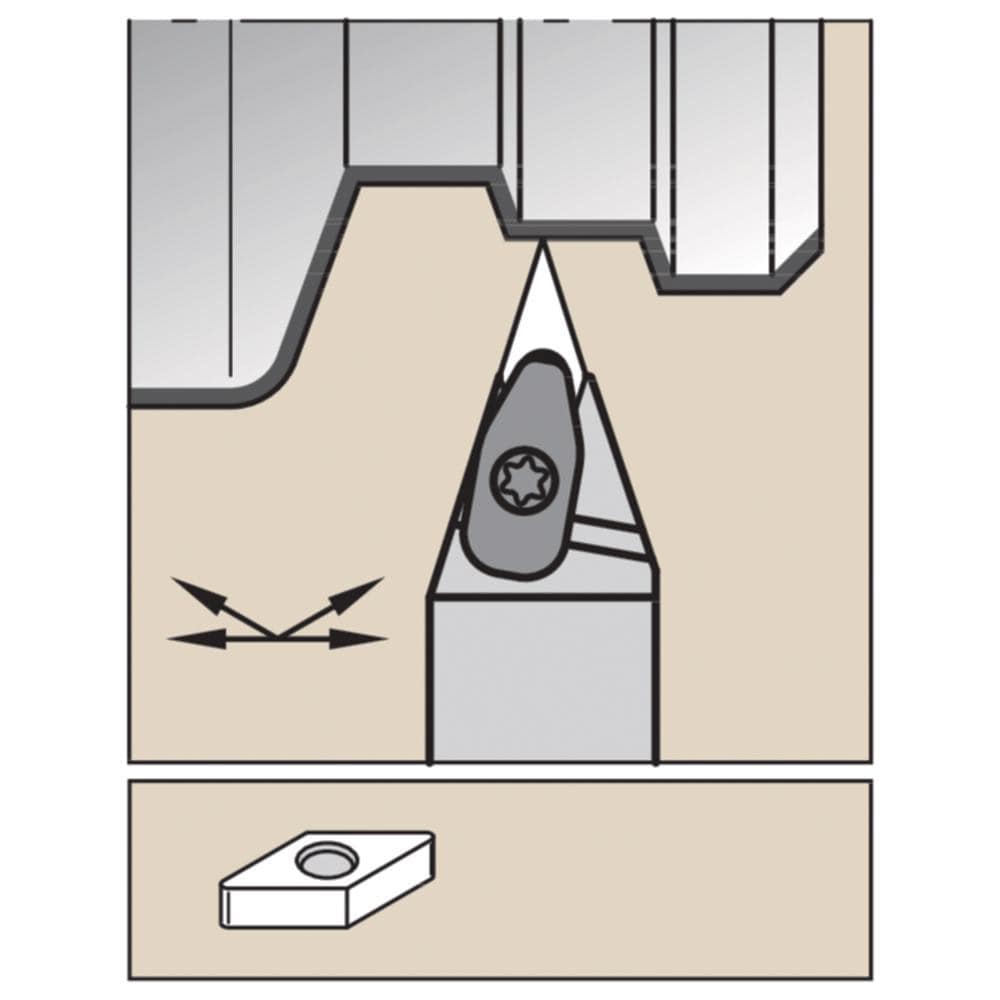

Toolholder Style DVVNN
Rake Negative
Rake Angle 0 (Axial);0 (Radial)
Multi-use Tool No
Lead Angle 72.500
Insert Holding Method Clamp
Insert Compatibility VN..1604..
Shank Width (mm) 20.00
Shank Height (mm) 20.00
Series DVVN
Overall Length (mm) 125.0000
Cutting Tool Application Copying; Turning
Head Length (mm) 48.01
Back of Bar to Cutting Edge (mm) 10.00
Primary Workpiece Material Universal
Insert Width (mm) 9.53
Toolholder Material Steel
ISO Number DVVNN2020K16KC04
Complete Insert Compatibility VN..
Insert Thickness 4.76
Coolant Through No
Insert Inscribed Circle (mm) 9.53
$112.41
