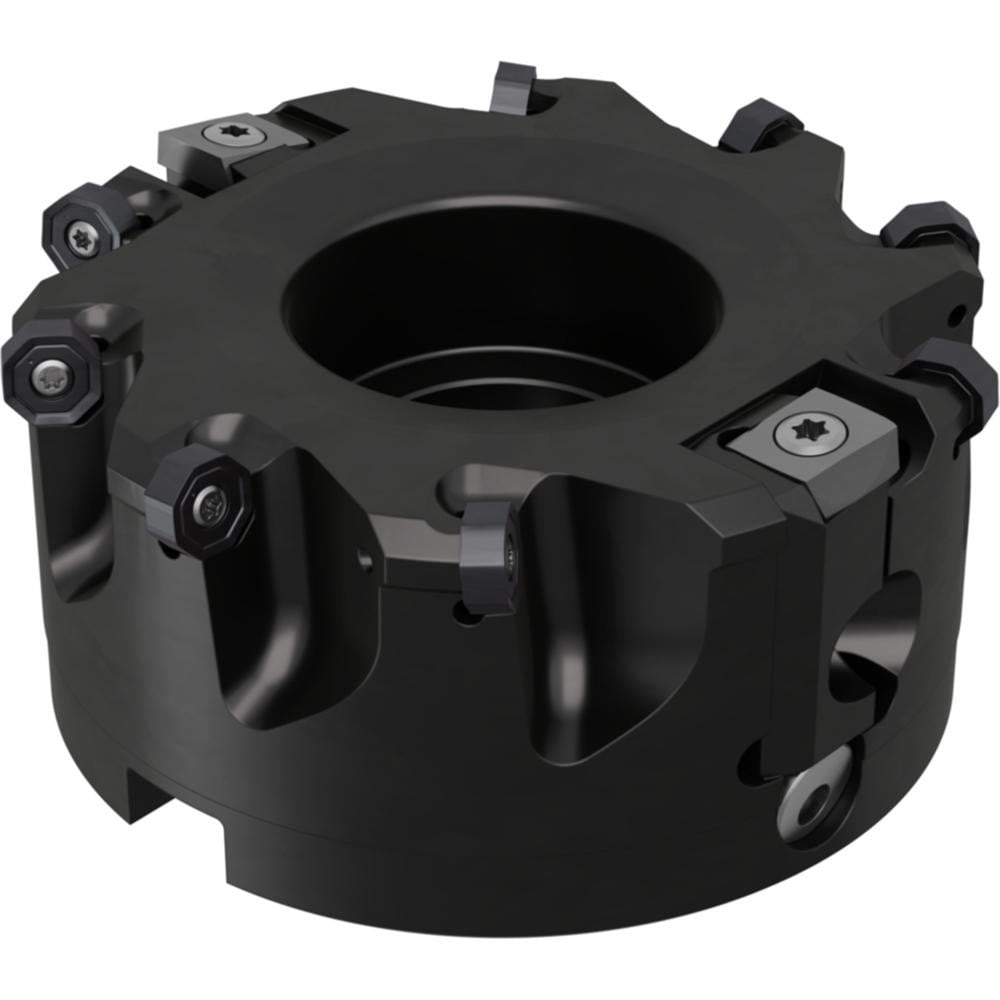

Brand: Widia / Part #: 5546056
Item #: 99601064
Brand: Widia
Model #: 5546056
Product Specifications
| Minimum Cutting Diameter (mm) | 125.00 |
| Maximum Cutting Diameter (mm) | 131.45 |
| Maximum Depth of Cut (mm) | 2.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 42.000 |
| Compatible Insert Size Code | 1004 |
| Cutter Style | M1600 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | M1600 |
| Hub Diameter (mm) | 89.000 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Maximum Body Diameter (Decimal Inch) | 5.0145 |
| Maximum Body Diameter (mm) | 127.37 |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | XDHX |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M1600D125Z12W3S40ON04 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | No |
| Number Of Flutes | 12 |
