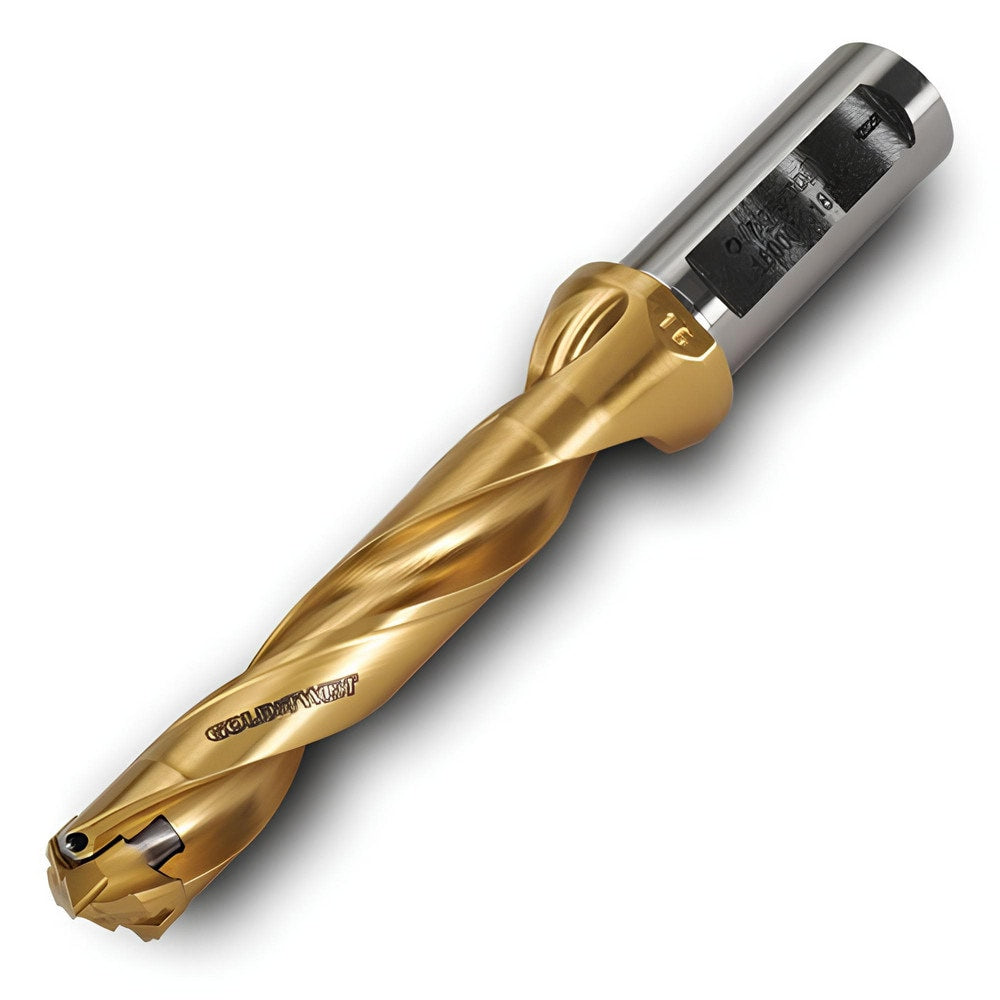

Brand: Ingersoll Cutting Tools / Part #: 3212798

Brand: Ingersoll Cutting Tools / Part #: 3212798


Item #: 98798374
Brand: Ingersoll Cutting Tools
Model #: 3212798

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.9055
Maximum Drill Diameter (Decimal Inch) 0.9409
Drill Depth by Diameter Ratio 3xD
Maximum Drill Depth (Decimal Inch) 2.7200
Shank Type Weldon Flat
Insert Style TPA; TNA; TPC; TMA; TKA; TPF
Shank Diameter (Decimal Inch) 1.2500
Insert Seat Size 23
Tool Material Steel
Compatible Insert Style TPA; TNA; TPC; TMA; TKA; TPF
Compatible Insert Size Code 23..
Overall Length (Decimal Inch) 5.9850
Series TD
Toolholder Style TD
Flute Length (Decimal Inch) 3.6250
Body Length (Decimal Inch) 3.6250
Shank Length (Decimal Inch) 2.3600
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Cutting Direction Right Hand
Coolant Through Yes
Coating Classification PVD
