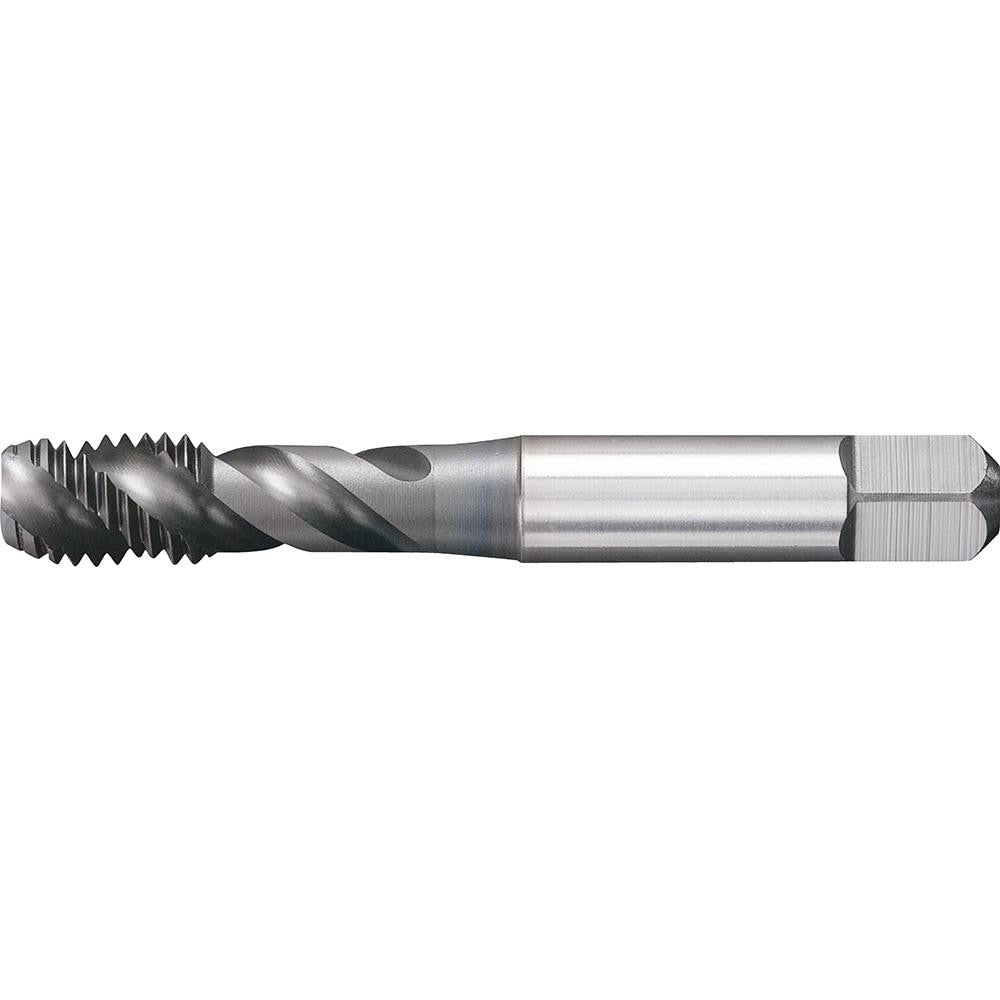

Brand: Widia / Part #: 3955185
Item #: 97190599
Brand: Widia
Model #: 3955185
Product Specifications
| Thread Size (Inch) | 1/2-13 |
| Chamfer | Modified Bottoming |
| Thread Limit | H7 |
| Class Of Fit | 2BX |
| Number Of Flutes | 4 |
| Material | Powdered Metal |
| Threads per Inch | 13 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.7700 |
| Overall Length (Decimal Inch) | 3.3800 |
| Thread Depth (Decimal Inch) | 1.7400 |
| Thread Pitch (Decimal Inch) | 0.0769 |
| Thread Standard | UNC |
| Material Grade | WU32MG |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Size (Decimal Inch) | 0.2750 |
| Material Application | High-Temperature Alloy; Steel |
| Series | GT30 |
