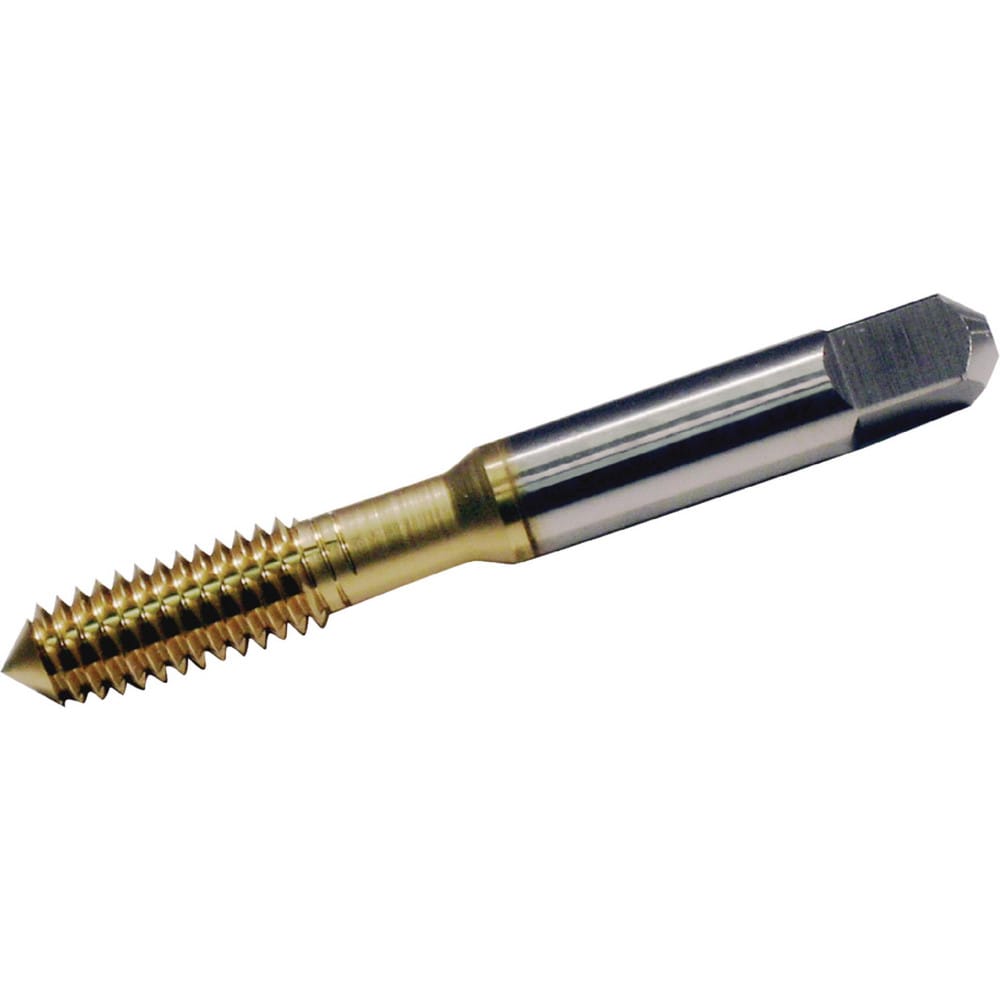

Brand: Widia / Part #: 2747131
Item #: 99331258
Brand: Widia
Model #: 2747131
Product Specifications
| Thread Size (Inch) | 1/2-13 |
| Overall Length (Decimal Inch) | 3.3800 |
| Chamfer | Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | H5 |
| Thread Pitch (Decimal Inch) | 0.0769 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.9380 |
| Thread Depth | 0.9380 |
| Thread Depth (Decimal Inch) | 0.9380 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Application | Metal |
| Series | 5902 |
| Tap Type | Blind |
| Tapping Depth (Decimal Inch) | 0.9380 |
| Shank Length (Decimal Inch) | 2.4420 |
| Threads per Inch | 13 |
| Class Of Fit | 2B |
| Coolant Through | No |
