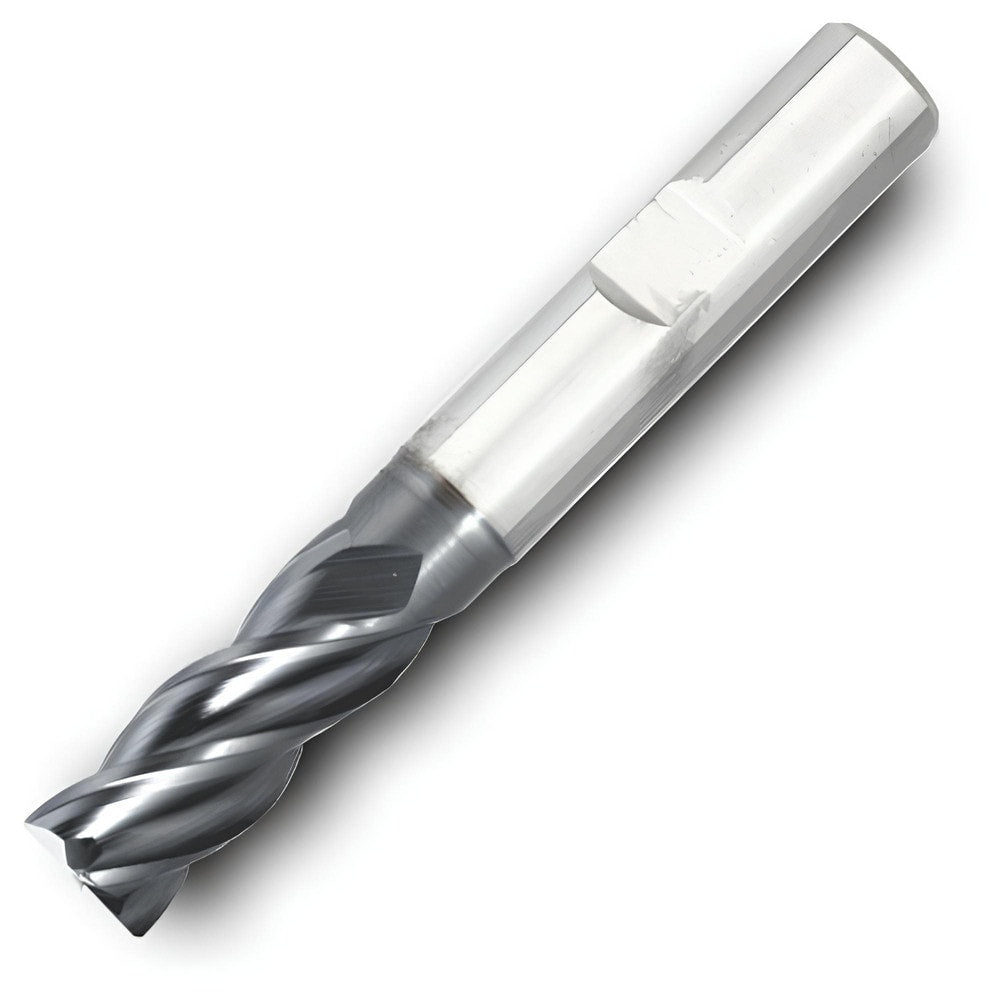

Brand: Ingersoll Cutting Tools / Part #: 2944379
Item #: 94039443
Brand: Ingersoll Cutting Tools
Model #: 2944379
Product Specifications
| Chamfer Width (Decimal Inch) | 0.0080 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Overall Length (Inch) | 2 |
| Length of Cut (Inch) | 3/8 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.1870 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| End Type | Corner Chamfer |
| Chamfer Angle | 45.000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Extra Long |
| Flute Type | Variable |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.1880 |
| Neck Diameter (Decimal Inch) | 0.1870 |
| Reach Length (Decimal Inch) | 0.3750 |
| Reach Length (Inch) | 3/8 |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 37 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Material Grade | IN2005 |
| Series | 47CRQ |
