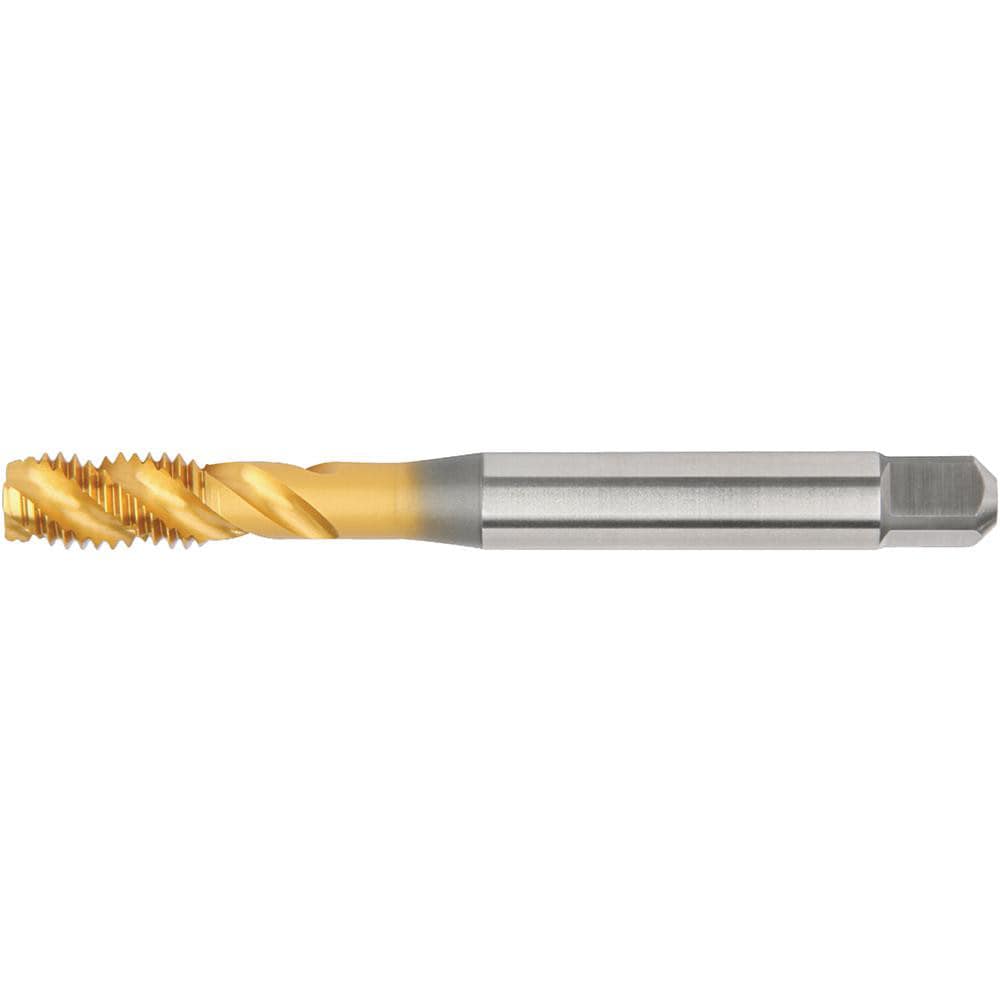

Brand: Widia / Part #: 5472618
Item #: 97300933
Brand: Widia
Model #: 5472618
Product Specifications
| Thread Size (Inch) | 7/16-20 |
| Chamfer | Modified Bottoming |
| Thread Limit | H5 |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.7100 |
| Overall Length (Decimal Inch) | 3.9400 |
| Thread Depth (Decimal Inch) | 1.6100 |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Thread Standard | UNF |
| Material Grade | WU41EG |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Square Size (Decimal Inch) | 0.2440 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
