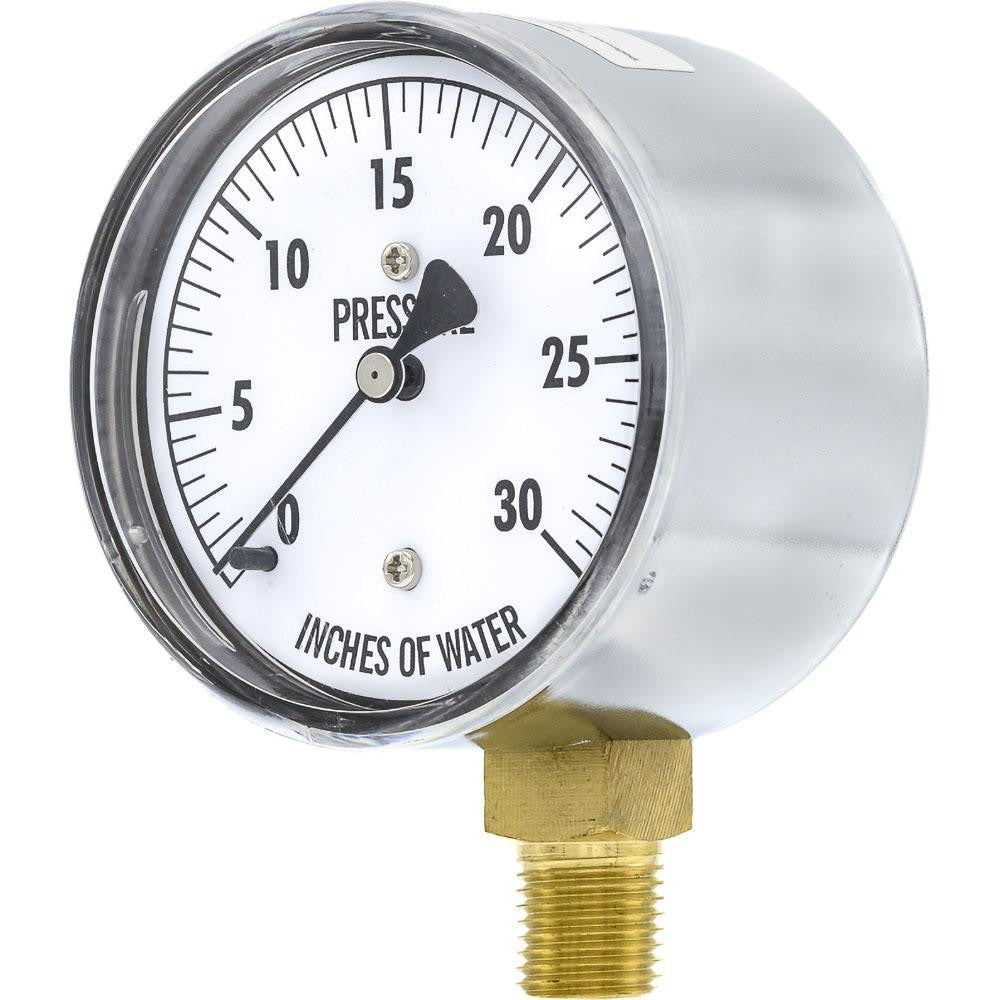

Brand: PIC Gauges / Part #: LP1-254-30
Item #: 58698754
Brand: PIC Gauges
Model #: LP1-254-30
Product Specifications
| Gauge Type | Low Pressure Gauges |
| Scale Type | Single |
| Accuracy (%) | 3-2-3% |
| Dial Type | Analog |
| Thread Type | 1/4" MNPT |
| Bourdon Tube Material | Bronze |
| Type of Liquid Filler | No-Fill |
| Mount Type | Lower |
| Wetted Parts Material | Copper Alloy |
| Dial Diameter (Decimal Inch) | 2.5000 |
| Minimum Pressure (psi) | 0.00 |
| Maximum Pressure (Psi - 2 Decimals) | 2.20 |
| Minimum Hg | 0 |
| Maximum Hg | 2 |
| Liquid Filled | No |
| Case Material | Chrome-Plated Steel |
| Lens Material | Plastic |
| Thread Size | 1/4 in NPT |
| Minimum Working Temperature (Deg F) | -30 |
| Maximum Working Temperature (F) | 180.000 |
| Minimum Working Temperature (Deg C) | -34 |
| Maximum Working Temprature (Deg C) | 82 |
