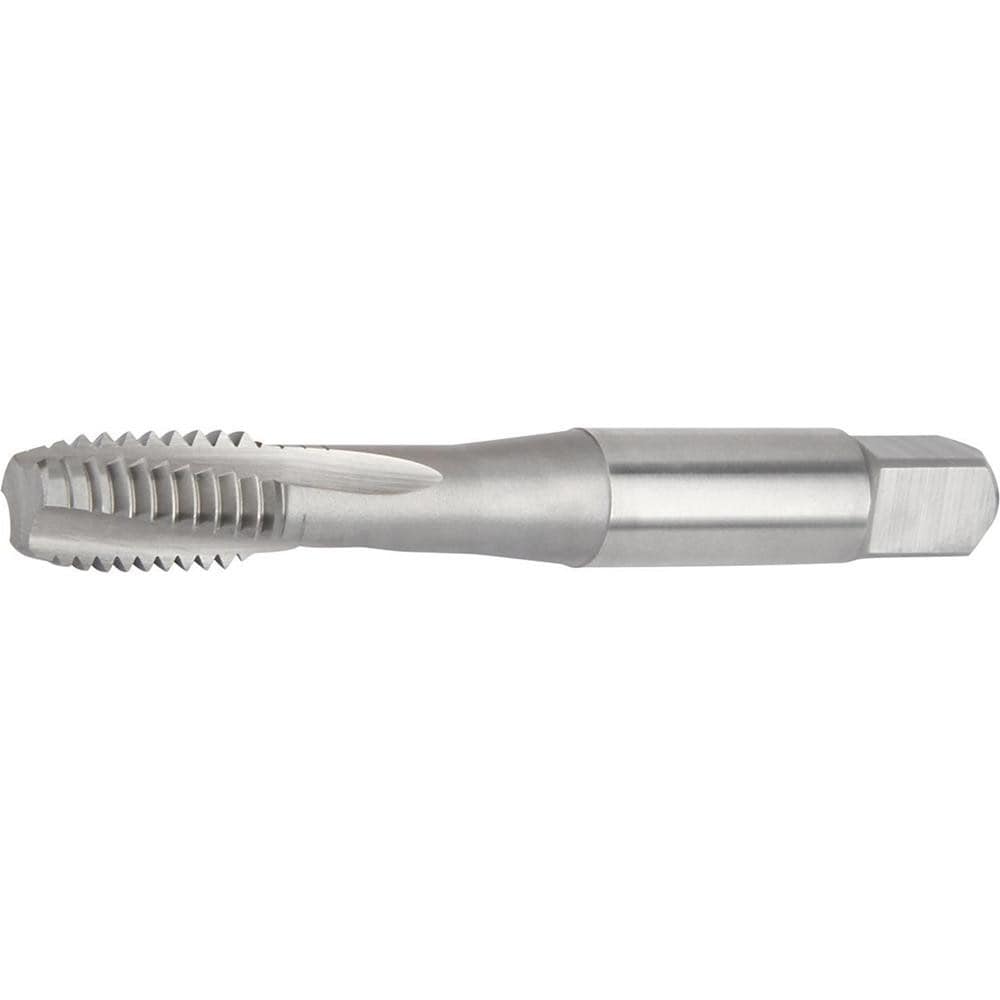

Brand: Widia / Part #: 5565067
Item #: 97415996
Brand: Widia
Model #: 5565067
Product Specifications
| Thread Size (Inch) | #4-40 |
| Chamfer | Modified Bottoming |
| Thread Limit | H2 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 40 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | C; CrC; TiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.5600 |
| Overall Length (Decimal Inch) | 1.8800 |
| Thread Depth (Decimal Inch) | 0.6900 |
| Thread Pitch (Decimal Inch) | 0.0250 |
| Thread Standard | UNC |
| Material Grade | WS34MG |
| Shank Diameter (Decimal Inch) | 0.1417 |
| Square Size (Decimal Inch) | 0.1080 |
| Material Application | High-Temperature Alloy |
| Series | GT-Ti |
