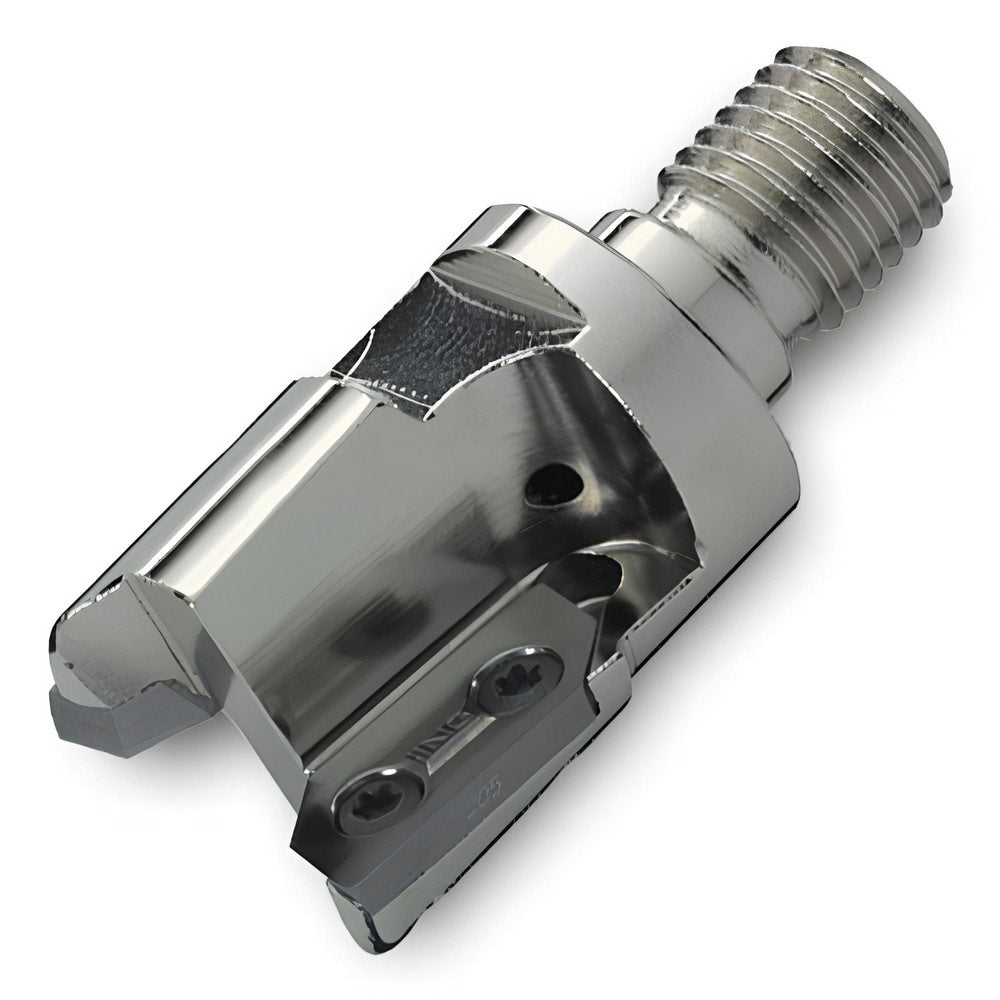

Brand: Ingersoll Cutting Tools / Part #: 3017113
Item #: 76518547
Brand: Ingersoll Cutting Tools
Model #: 3017113
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Minimum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Depth of Cut (mm) | 20.83 |
| Maximum Depth of Cut (Decimal Inch) | 0.8200 |
| Cutter Style | 15X1X |
| Shank Type | Modular Connection |
| Maximum Ramping Angle | 14.2 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 1.8800 |
| Tool Material | Steel |
| Series | 15X1X |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 1.8800 |
| Modular Connection Size | M16 |
| Tool Application | Facing; Pocketing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Positive |
| Complete Insert Compatibility | XEET2504.. |
| Insert Compatibility | XEET2504.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 15X1X-15018X8R01 |
| Usable Length (mm) | 47.750 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 1.8800 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
