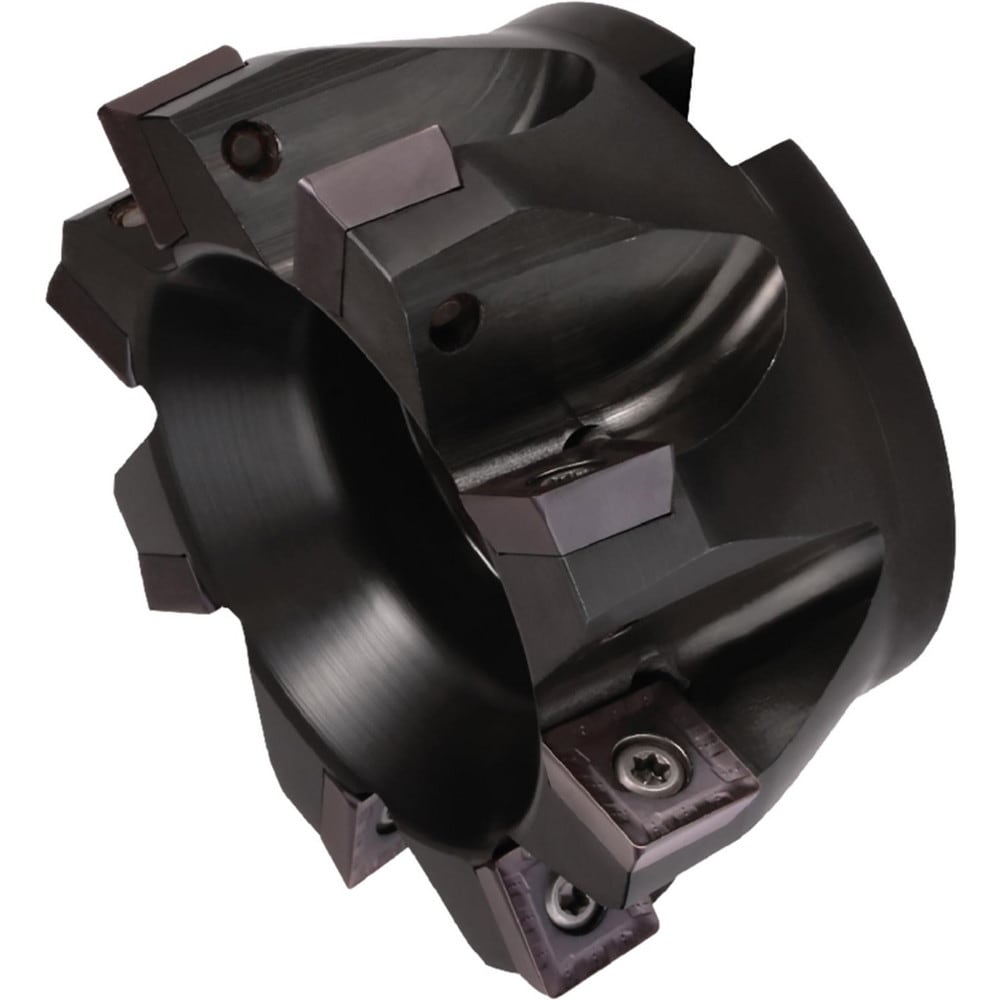

Brand: Widia / Part #: 2646791
Item #: 09785262
Brand: Widia
Model #: 2646791
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | SDMT1506.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | M690 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | M690 |
| Overall Height (Decimal Inch) | 2.0000 |
| Keyway Width (mm) | 9.78 |
| Hub Diameter (Decimal Inch) | 2.3000 |
| Maximum RPM | 17700.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | M690D300Z06S100SD15 |
| Complete Insert Compatibility | SDMT1506.. |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M690D300Z06S100SD15 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
