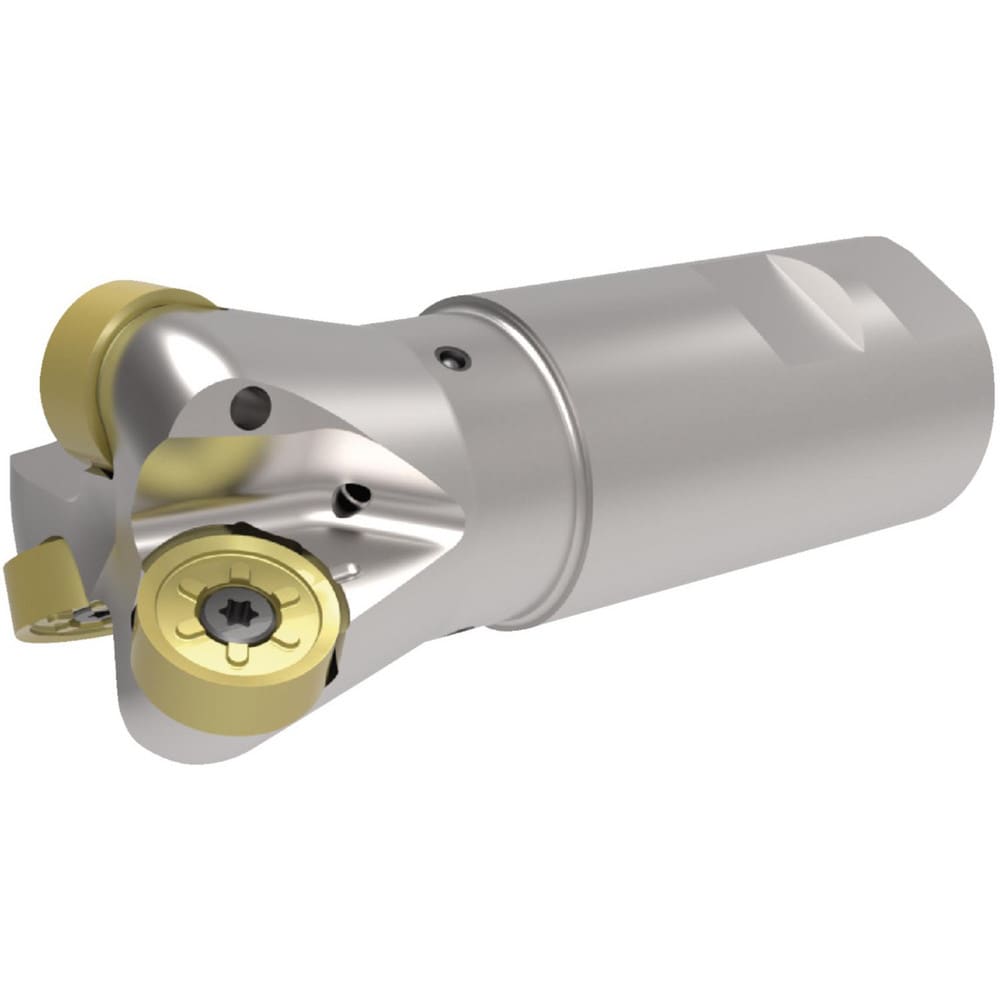

Brand: Widia / Part #: 6009950
Item #: 99420457
Brand: Widia
Model #: 6009950
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.2480 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Toolholder Style | M200 |
| Shank Type | Weldon Flat |
| Shank Diameter | 1.5000 |
| Maximum Ramping Angle | 1.3 |
| Compatible Insert Style | RN_J |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 64__ |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 4.6902 |
| Series | M200 |
| Flute Type | Straight |
| Maximum Rpm | 19000.000 |
| Shank Length (Decimal Inch) | 2.6902 |
| Functional Length (Decimal Inch) | 4.6902 |
| Head Length (Inch) | 2 |
| Insert Diameter (Decimal Inch) | 0.7500 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
