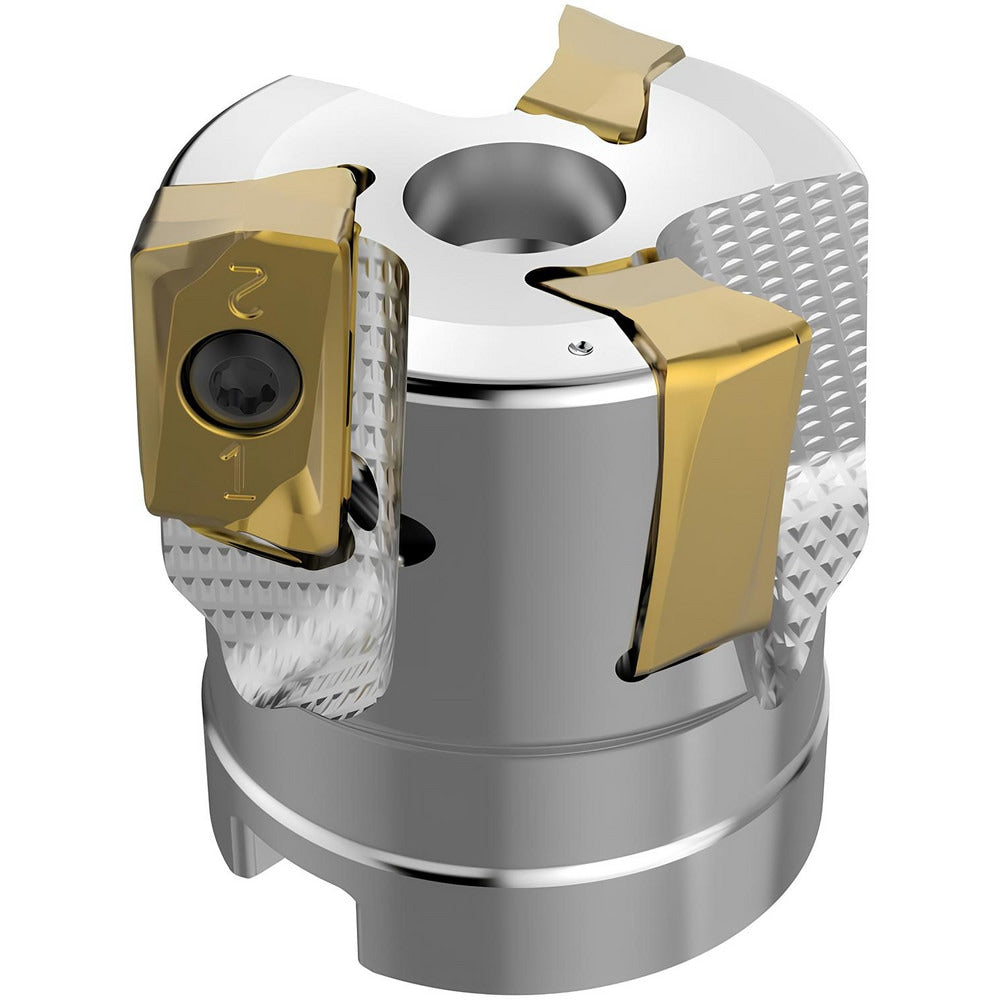

Brand: Seco / Part #: 03290237
Item #: 40062911
Brand: Seco
Model #: 03290237
Product Specifications
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 15.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Compatible Insert Size Code | ZOMX1607 |
| Maximum Ramping Angle | 0.25 |
| Cutter Style | R220.64 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Rake Angle | -20.600 |
| Series | R220.64 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Keyway Width (mm) | 10.40 |
| Hub Diameter (mm) | 35.000 |
| Pitch Type | Normal |
| Maximum RPM | 10000.000 |
| Tool Application | Slotting; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Keyway Depth (mm) | 6.30 |
| Number of Adjustable Pockets | 0 |
| ISO Number | R220.64-0040-ZO16-3A |
| Complete Insert Compatibility | ZOMX1607 |
| Toolholder Material | Stainless Steel |
| Manufacturers Catalog Number | R220.64-0040-ZO16-3A |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
