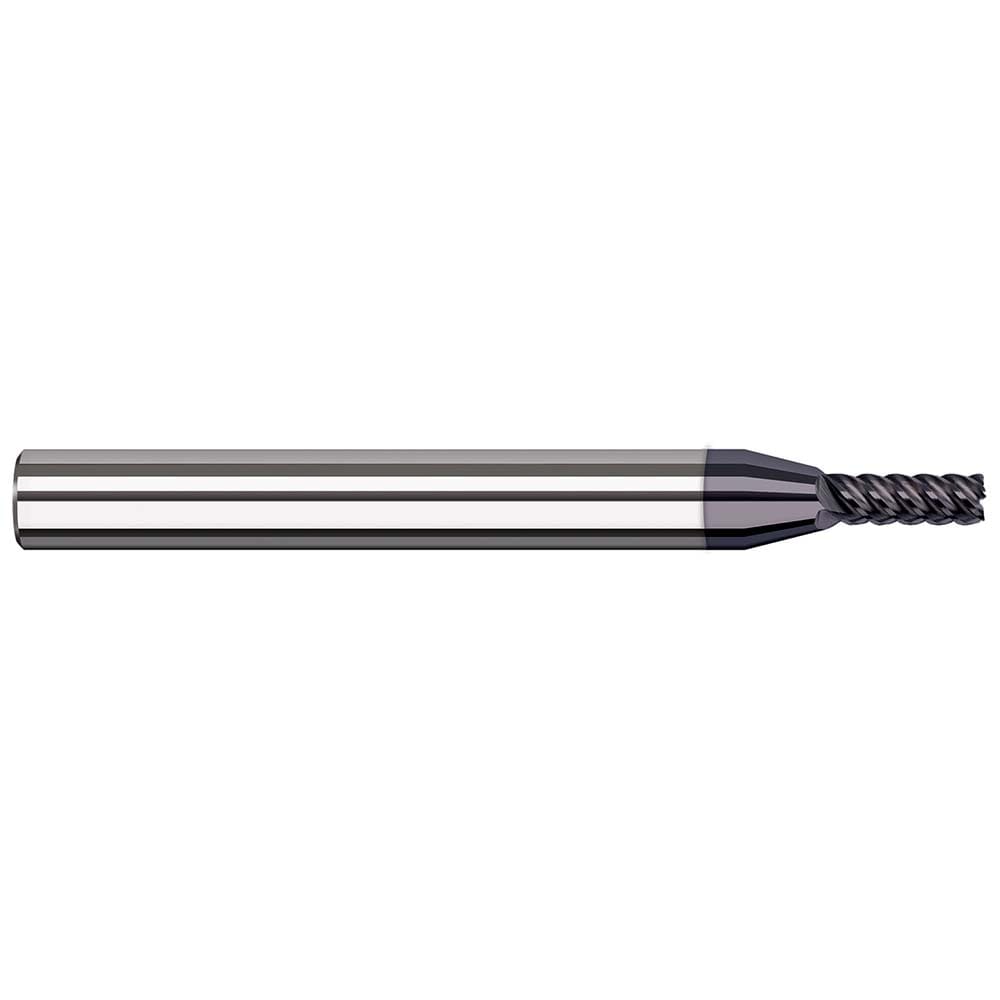

Brand: Harvey Tool / Part #: 749122-C6
Item #: 82836875
Brand: Harvey Tool
Model #: 749122-C6
Product Specifications
| Mill Diameter (mm) | 1.00 |
| Corner Radius (mm) | 0.10 |
| Coating/Finish | AlTiN Nano |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 6 |
| Single Or Double End | Single |
| Overall Length (mm) | 50.0000 |
| Length of Cut (mm) | 3.0000 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.0394 |
| Flute Direction | Right Hand |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1181 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (mm) | 4.0000 |
| Series | Variable Helix End Mills for High Temp Alloys - Finishers - Corner Radius |
