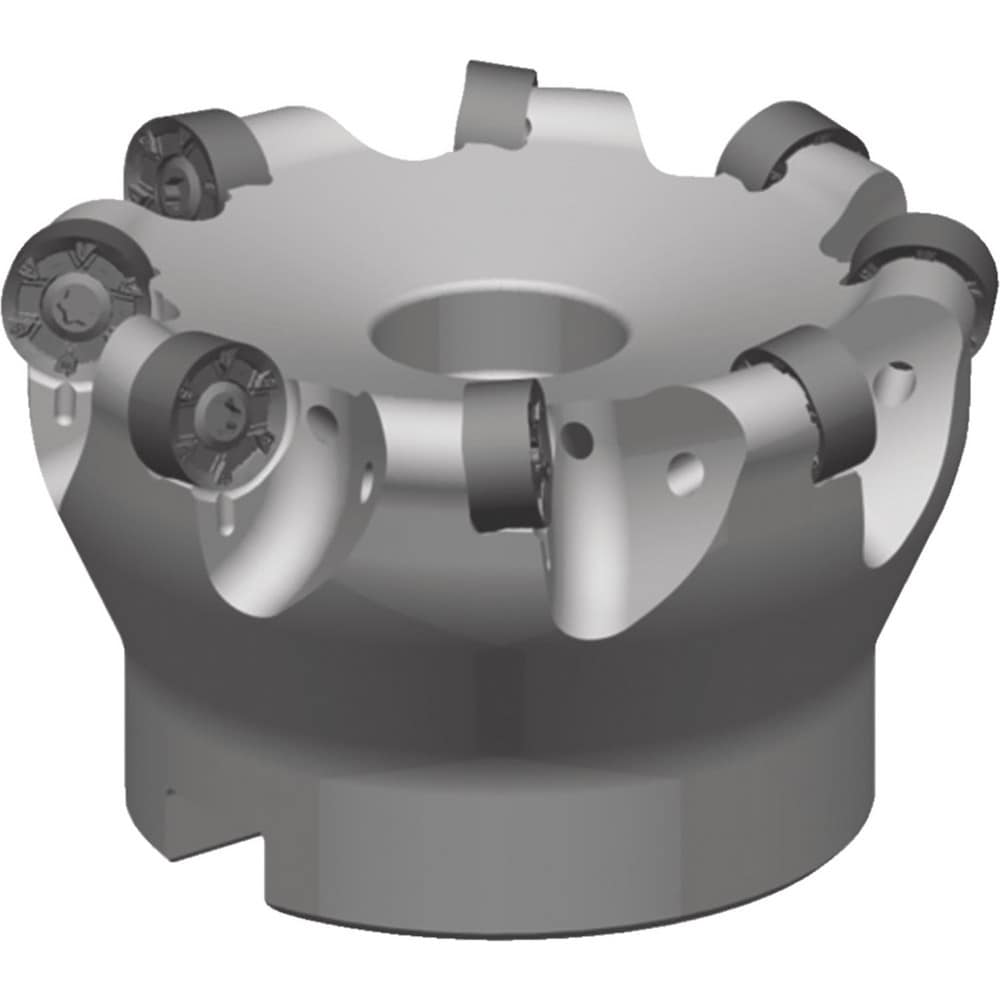

Brand: Widia / Part #: 5068403
Item #: 19162718
Brand: Widia
Model #: 5068403
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.5276 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Arbor Hole Diameter (mm) | 0.75 |
| Compatible Insert Size Code | RN_J1204M0___ |
| Maximum Ramping Angle | 0.40 degree |
| Cutter Style | M200 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M200 |
| Hub Diameter (Inch) | 1-3/4 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Maximum RPM | 31080 |
| Tool Application | Profiling; Pocketing; Milling; Slotting; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
