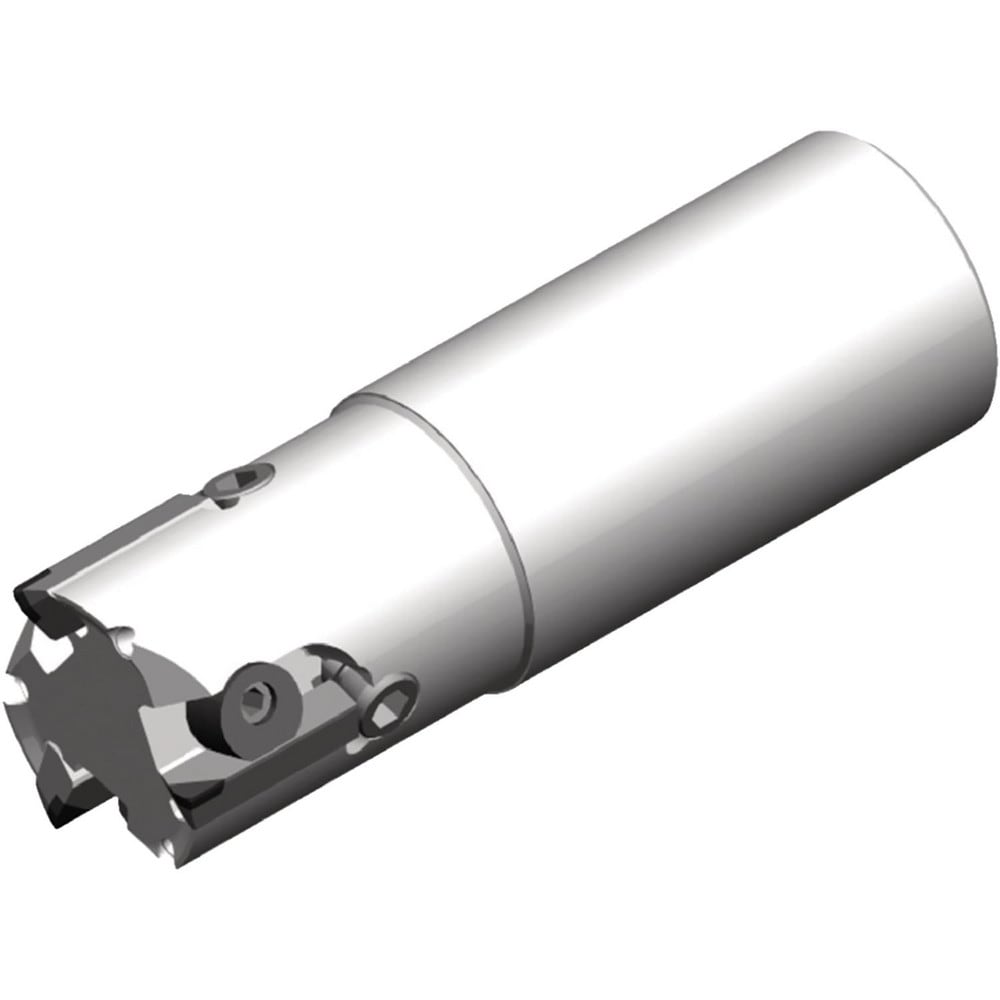

Brand: Widia / Part #: 5363199
Item #: 83135095
Brand: Widia
Model #: 5363199
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.9445 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Toolholder Style | WSSEM |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 1.00 |
| Compatible Insert Style | SDR; EDR |
| Compatible Insert Size Code | 1000 |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Overall Length (mm) | 4.00 |
| Series | WSSEM |
| Flute Type | Straight |
| Maximum RPM | 31700 |
| Head Length (Decimal Inch) | 1.7500 |
| Functional Length (Decimal Inch) | 4.0000 |
| Projection (Decimal Inch) | 4.0000 |
| Projection (Inch) | 4 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
