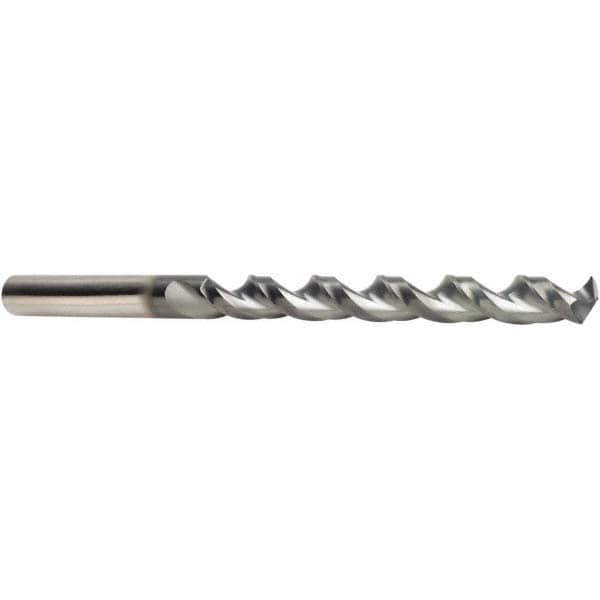

Brand: DORMER / Part #: 5972513
Item #: 80990427
Brand: DORMER
Model #: 5972513
Product Specifications
| Overall Length (mm) | 146.00 |
| Flute Length (mm) | 86.00 |
| Tool Material | Cobalt |
| Coating/Finish | AlCrN |
| Drill Point Angle | 130 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Parabolic |
| Series | A941 |
| Point Type | Notched |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance | 0.000 to -0.018 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Aluminum Magnesium |
| Primary Workpiece Material Code | P; H; K; M; N |
| Secondary Workpiece Material | Titanium; Copper |
| Secondary Workpiece Material Code | S; N |
| Standards | DIN; ANSI |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.1874 |
| Shank Diameter (Decimal Inch) | 0.1900 |
| Shank Diameter (mm) | 4.76 |
| Shank Length (mm) | 60.00 |
| Flute Length (Decimal Inch) | 3.3884 |
| Flute By Diameter Ratio | 10xD |
| Specification Designation | DIN; ANSI |
