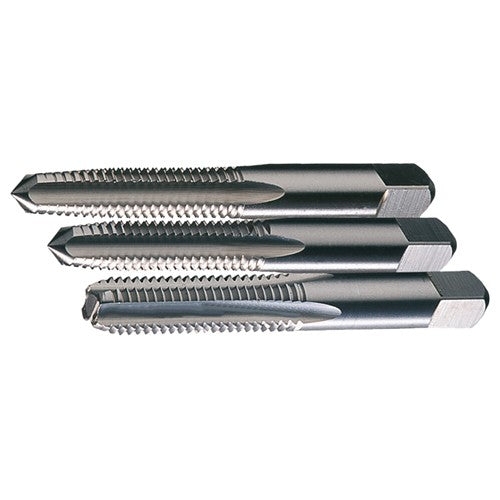

9/16-12 UNC 4 Flute H3 Taper-Plug-Bottoming HSS Standard Straight Flute 3-Piece Hand Tap Set- Bright
Item #: VT10342647
Brand: Greenfield Threading
Model #: 342647
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 9/16″ |
| Overall Length (OAL) | 3.59″ |
| Thread Standard | NC |
| Connection Diameter Machine Side (DCONMS) | 0.429″ |
| Threads per Inch (TPI) | 12 |
| Flute Count (NOF) | 4 |
| Flute Type | Straight |
| Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | H3 |
| Quantity | 3 |
| Style | Taper|Plug|Bottoming |
| Application | General Purpose |
| Tool Type | Tap | Hand Taps |
| Measurement Type | Inch |
| Shank Type | Round w/ Drive Square |
| Series/List # | HTGP-3PC |
| Flute Length | 1.66″ |
| Thread Cutting Part Length (THL) | 1″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Size | 9/16″ - 12 |
| Coating | Bright |
