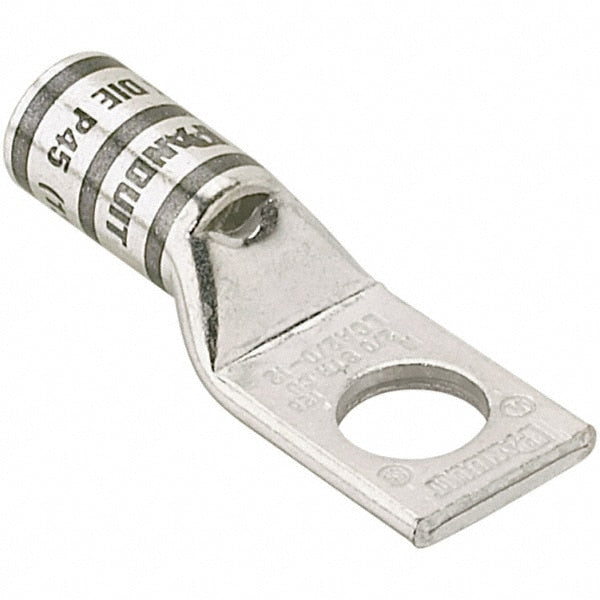

Brand: Panduit / Part #: LCA3/0-12-X
Item #: 46795597
Brand: Panduit
Model #: LCA3/0-12-X
Product Specifications
| Terminal Type | Rectangle |
| Insulation Type | Non-Insulated |
| Connection Type | Compression |
| Compatible Wire Size (AWG) | 3/0 |
| Stud Size (Inch) | 1/2 |
| Contact Material | Copper |
| Contact Plating | TiN |
| Thickness (mm) | 3.30 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1300 |
| Ring Width (mm) | 24.38 |
| Ring Width (Decimal Inch) | 0.9600 |
| Overall Length (mm) | 65.79 |
| Overall Length (Decimal Inch) | 2.5900 |
