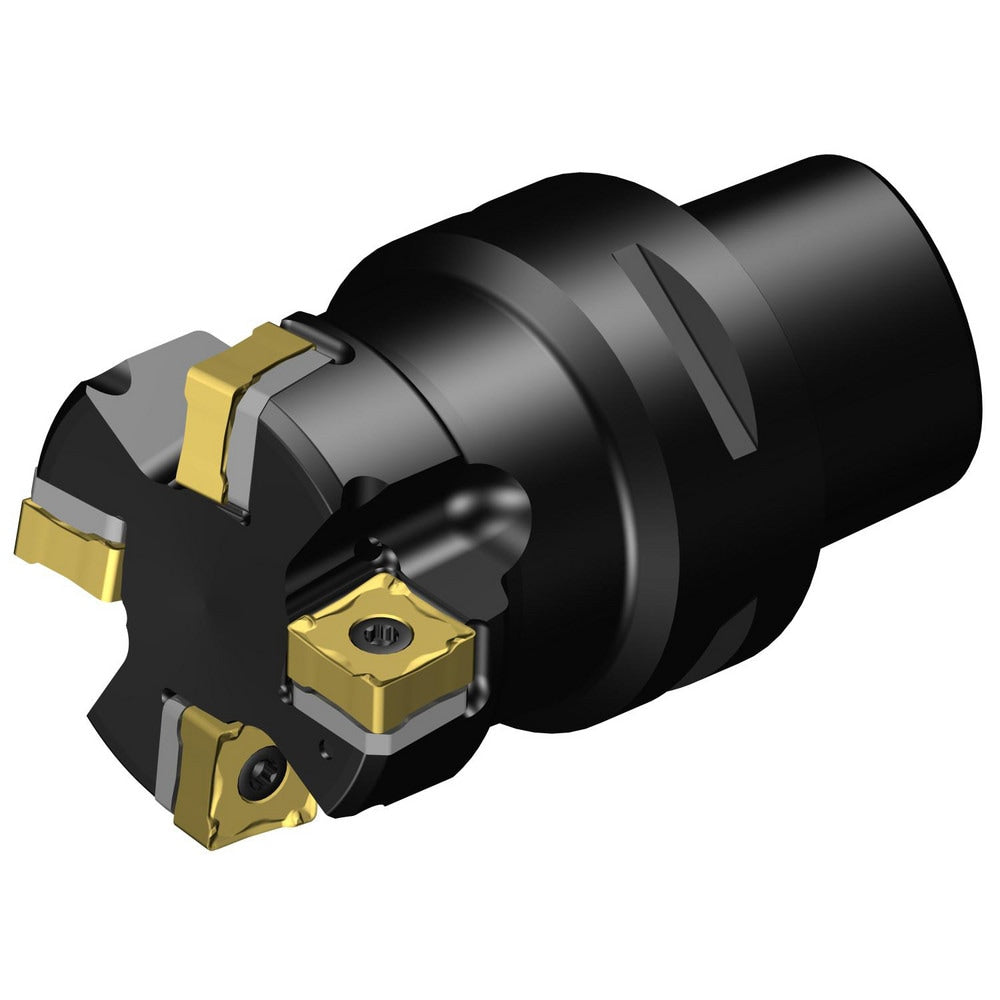

Indexable Square-Shoulder Face Mill: MF80-R050C5-13M, 1.9685" Arbor Hole Dia, 0.3543" Max Cutting Depth
Item #: 01789999
Brand: Sandvik Coromant
Model #: 8385713
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.9685 |
| Minimum Cutting Diameter (mm) | 50.00 |
| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Compatible Insert Size Code | 1305 |
| Cutter Style | MF80 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 89.5 |
| Rake | Neutral |
| Series | MF80 |
| Maximum RPM | 13200.000 |
| Tool Application | Facing; Milling |
| Complete Insert Compatibility | CoroMill MF80 -1305 |
| UNSPSC Code | 23241624 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MF80-R050C5-13M |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
