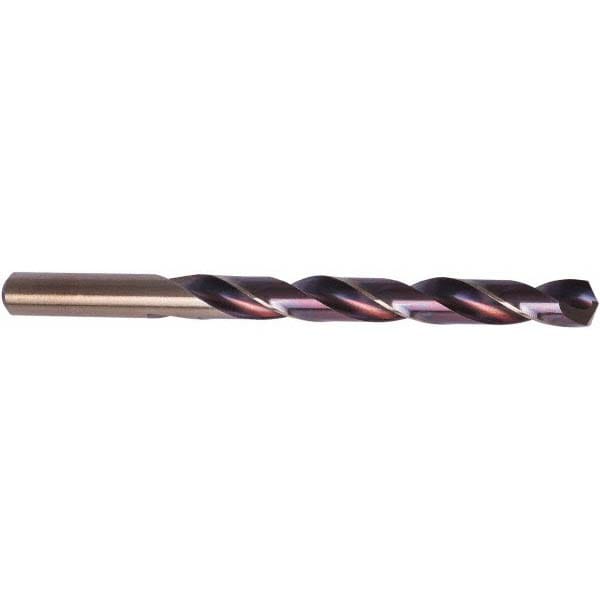

Brand: Precision Twist Drill / Part #: 5996345
Item #: 67827915
Brand: Precision Twist Drill
Model #: 5996345
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2661 |
| Drill Bit Size (Letter) | H |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Purple/Bronze |
| Drill Point Angle (Degrees) | 135 |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-7/8 |
| Shank Diameter (Decimal Inch) | 0.2661 |
| Overall Length (Inch) | 4-1/8 |
| Overall Length (Decimal Inch) | 4.1250 |
| Flute Length (Decimal Inch) | 2.8750 |
| Series | HX15 |
| Tool Application | Centering |
| Flute Length x Diamter Ratio | 4xD |
| Flute By Diameter Ratio | 4xD |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Standards | ANSI |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Material Grade | M2 |
| Specification Designation | ANSI |
