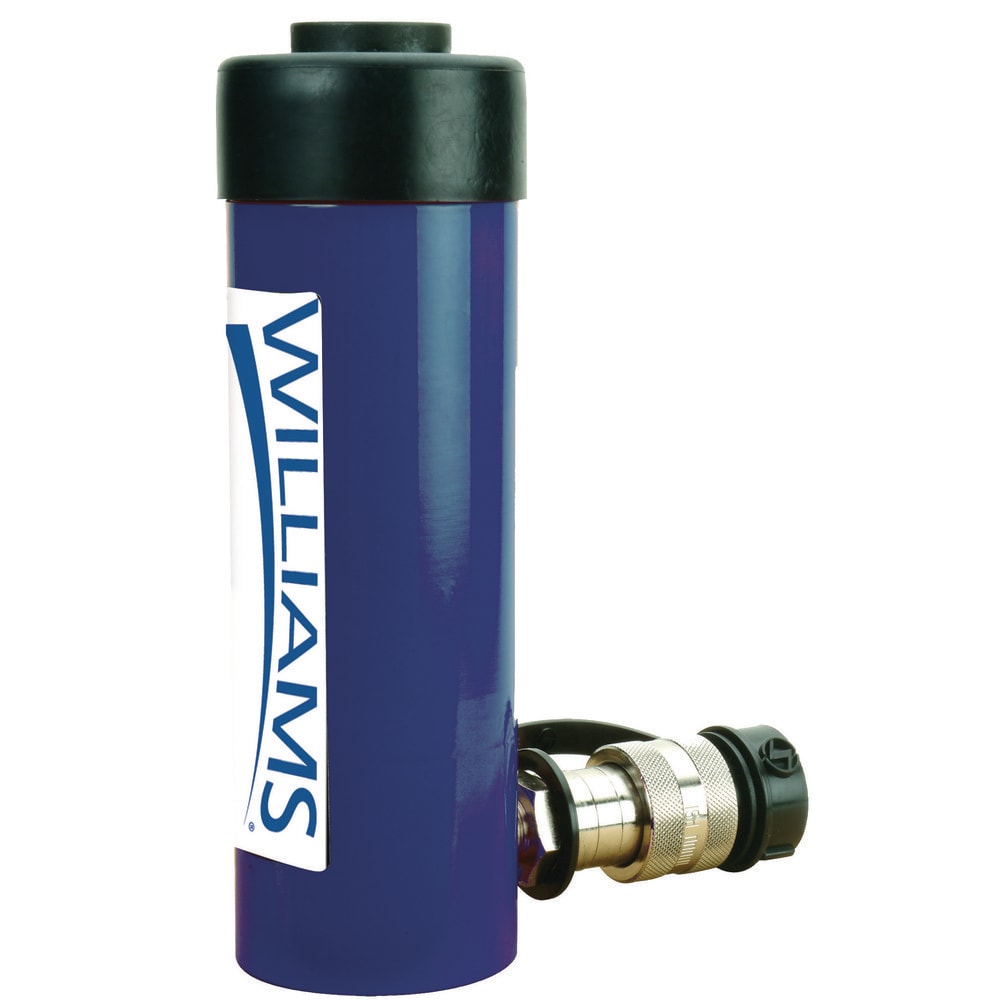

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 25 TON; Stroke Length: 1.02; Piston Stroke (Decimal Inch): 1.02; Oil Capacity: 5.24; Cylinder Effective Area: 5.14; Lowered Height: 5.84
Item #: 54375837
Brand: Williams
Model #: 6C25T01
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 25 TON |
| Stroke Length | 1.02 |
| Piston Stroke (Decimal Inch) | 1.02 |
| Oil Capacity | 5.24 |
| Cylinder Effective Area | 5.14 |
| Lowered Height | 5.84 |
| Retracted Length | 5.84 |
| Extended Length | 6.86 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 3.35 |
| Rod Diameter | 2.5 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Rod Thread Size | .75 |
| Saddle Diameter | 1.94 |
| Y Center Hole Diameter | 2.56 |
| Maximum Height (Inch) | 6.86 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
