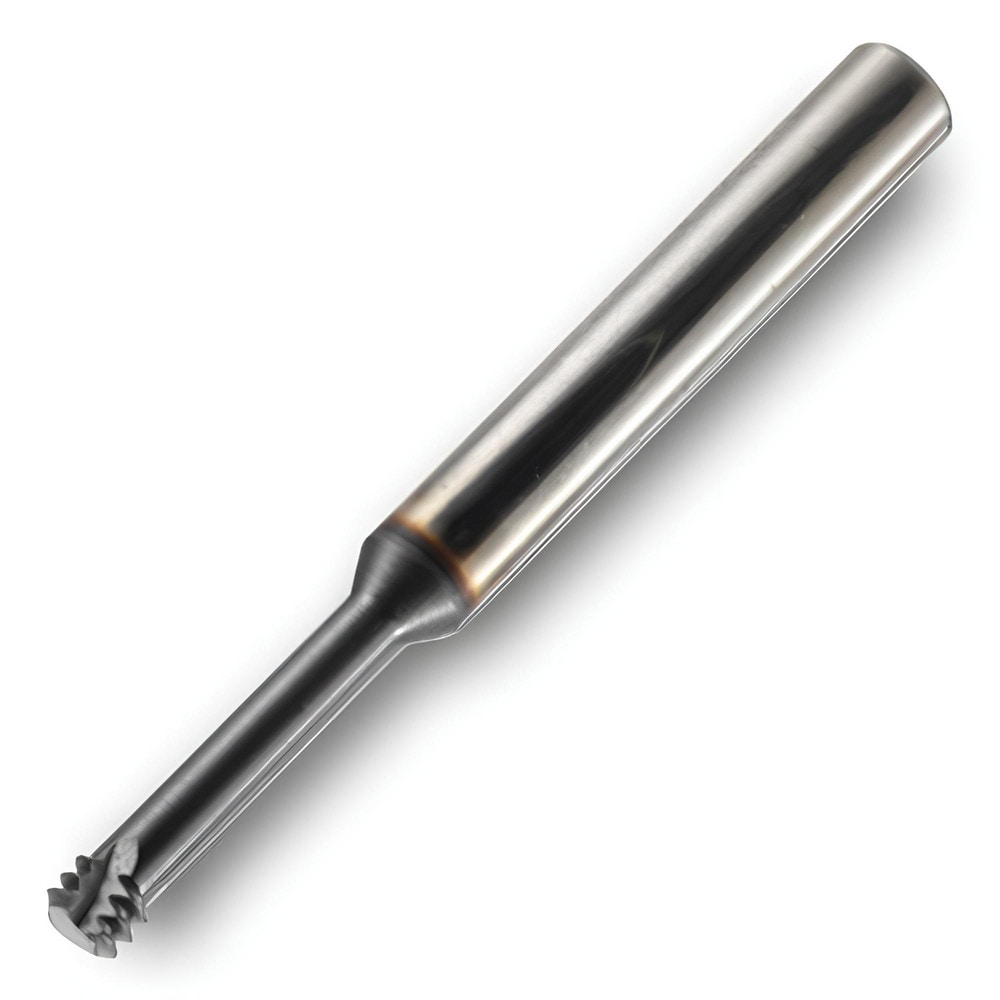

Brand: Ingersoll Cutting Tools / Part #: 3025532
Item #: 99346645
Brand: Ingersoll Cutting Tools
Model #: 3025532
Product Specifications
| Pitch (mm) | 1.75 |
| Material | Solid Carbide |
| Thread Size (mm) | M12x1.75 |
| Thread Depth (mm) | 25.91 |
| Thread Depth | 25.9100 |
| Thread Type | Metric |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.3540 |
| Length of Cut (mm) | 25.9100 |
| Minimum Nominal Diameter (mm) | 12.00 |
| Shank Length (mm) | 50.290 |
| Overall Length (mm) | 76.2000 |
| Thread Standard | Metric |
| Thread Mill Type | Long Reach |
| Flute Direction | Right Hand |
| Material Grade | IN2005 |
| Series | MTECS-ISO |
| Number Of Flutes | 3 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Thread Length (mm) | 12.00 |
